TR-D8123ZIR4 v7 2.7–13.5
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 40 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
2MPForm factor:
SphereMaximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.7 - 13.5 (motorzoom)Net Weight (kg):
0.40 / 0.49Sensitivity(Lux):
0.005Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
11.1WDimensions (mm):
Ø120 x 110.8Power consumption, Watt:
DC: 10.0W PoE: 11.1WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H102°- 34°±5°, V54°- 20°±5°Video compression:
Н.265+ / Н.265 / H.264

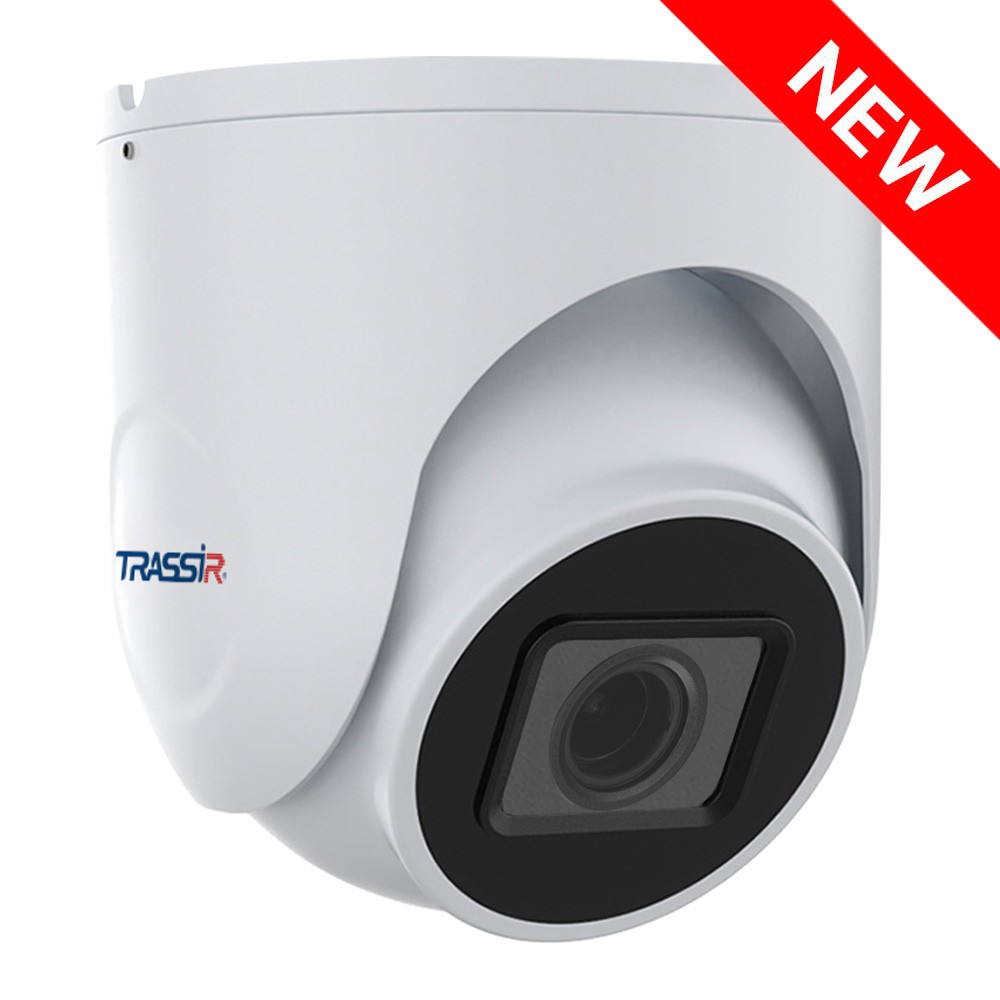

The 2 MP (1920×1080) IP camera TRASSIR TR-D8123ZIR4 v7 2.7–13.5 is designed for outdoor use in areas with direct access and operates reliably year-round, day or night. Its metal housing is protected against moisture and dust (IP66) and resists mechanical impacts (IK10). The operating temperature range is –40 °C to +60 °C. It features lightning protection rated at TVS 4000 V and an integrated IR illumination range of up to 40 meters.
Parameters:
- Detection of people, vehicles, line crossing, and area entry/exit
- Real WDR 120 dB – reduces the impact of high-contrast lighting on image quality
- 3D DNR – spatial noise reduction
- Corridor mode – optimized for vertically oriented image capture
- 1/2.8" CMOS sensor with 0.005 lx sensitivity
- Motorized lens (2.7–13.5 mm) with a horizontal viewing angle of 102°–34°, vertical angle of 54°–20°, and an aperture of F/1.6
- Mechanical IR filter blocks infrared rays when there is sufficient light
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V, PoE. Maximum power consumption: 10.0 W
- Dimensions: Ø120 × 110.8 mm
- Weight: 400 g
TR-D8123ZIR4 v7 2.7–13.5.pdf
