NeuroStation 8208R/16

Technical Specifications

Audio:

audio in/out 1/1

Resolution of cameras (max):

No limits

IP video input:

16

Bitrate (Mb/sec):

640

Weight Net (kg):

5.3

Power supply, V:

AC 220

Dimensions (mm):

482 х 390 х 89

Power consumption, Watt:

400

Working temperature, C°:

10...30ºС

Network interfaces:

Ethernet

Video compression:

H.265+, H.265, H.264, MPEG4 or MJPEG

USB 3.0:

3
Overview

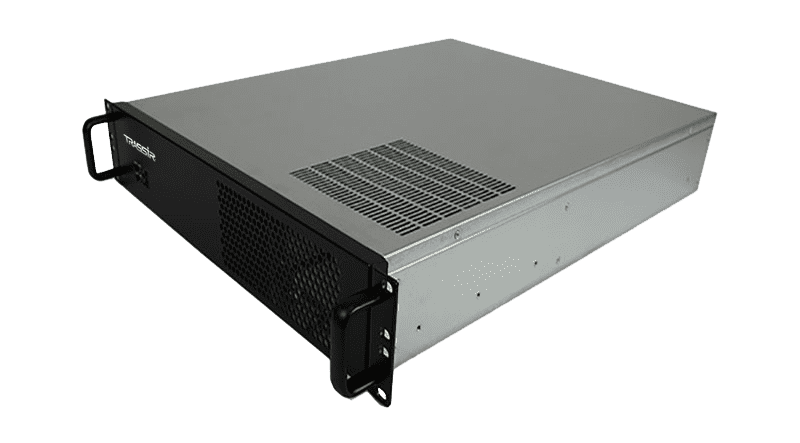

Rack (2 U, 19 "rack) IP-video recorder is designed for 16 IP cameras (8 AnyIP licenses included). Equipped with one Gigabit network ports RJ-45, video outputs D-SUB (VGA), HDMI, 2 SATA interfaces for HDD 3.5 " of any capacity, two USB 2.0 on the front panel, three USB 3.0, one USB 2.0 on the rear panel, PS / 2 for mouse and keyboard, audio in, audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs (depending on the IP camera).


Equipment:


  • Video recorder (assembled and packaged).

  • Mouse (USB)

  • Power cord

  • Product data sheet

  • Warranty card



Basics:

NeuroStation series IP video recorders support video analytic modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives.


Other Products

NeuroStation 8664R/64-S

Network video recorder for IP-cameras

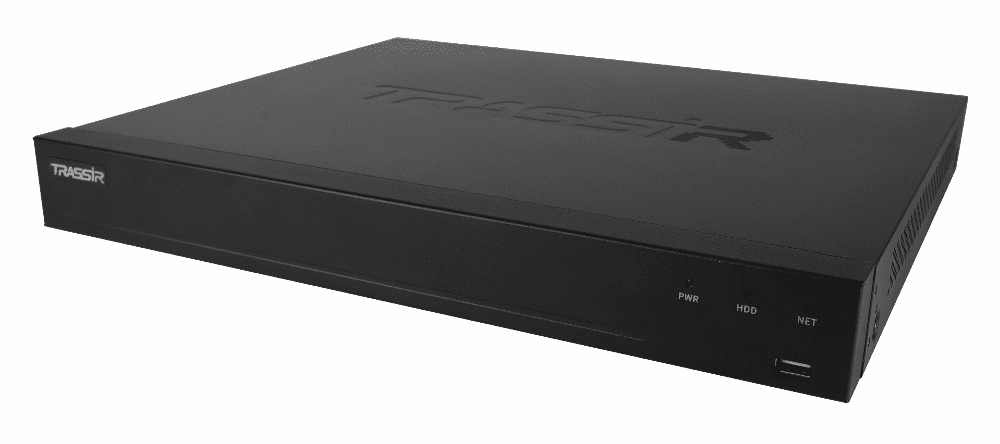

TRASSIR MiniNVR 2216R

Network video recorder for building CCTV systems

TRASSIR DuoStation 2416R-16P

Network video recorder for building CCTV systems

NeuroStation

Network video recorder for IP-cameras

TRASSIR NeuroStation Compact RE AnyIP 8

Network video recorder for building CCTV systems

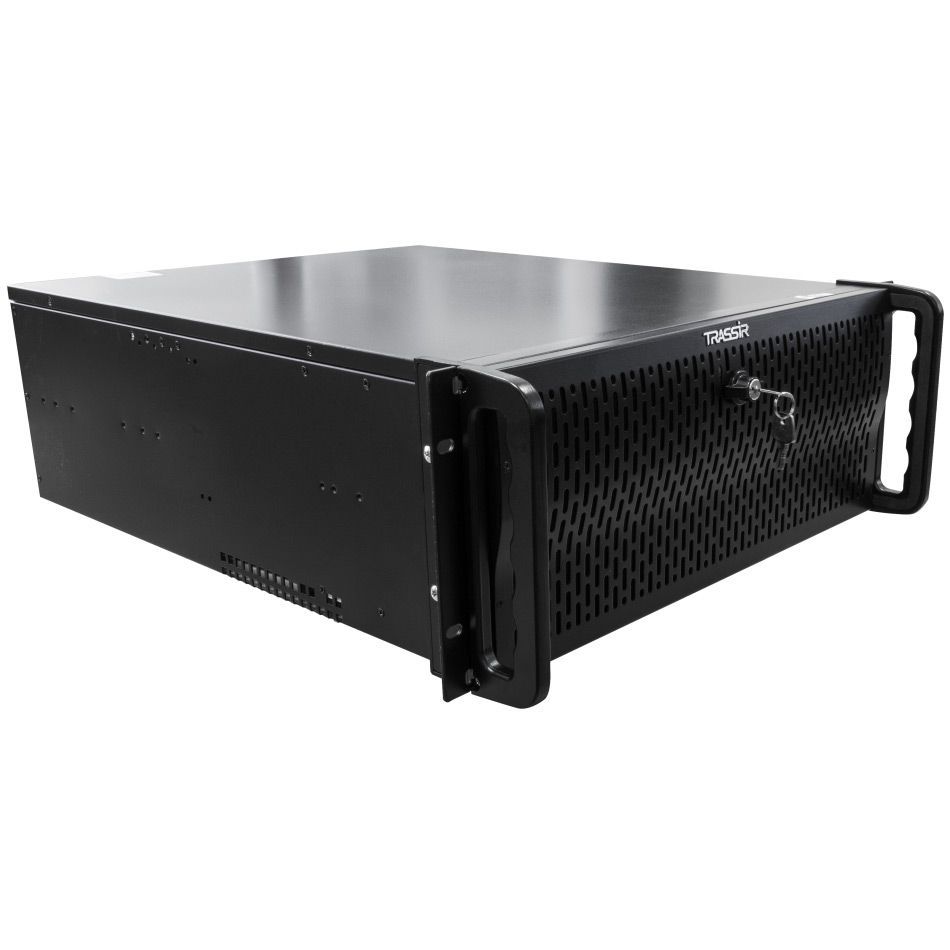

TRASSIR NeuroStation 8800R/160-A8-S
