Technical specifications

Audio:

Built-in microphone

WDR:

RWDR 120 dB

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Dome

Wi-Fi:

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

Power supply:

12V DC

Lens (mm):

3.6

Net Weight (kg):

0.450

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø116.10 x 96.51

Power consumption, Watt:

5.2

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264

Overview

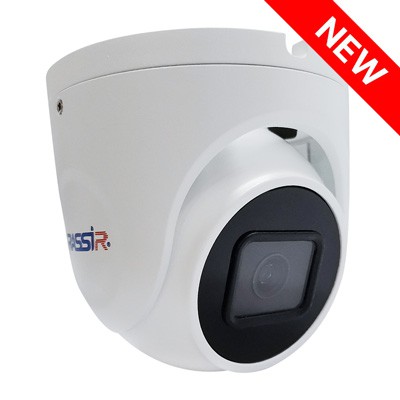

5 MP (2560 × 1920) TRASSIR TR-D3151IR2 v2 3.6 IP camera is adapted for outdoor use, including places of direct access, regardless of the season: protection of the case from moisture and dust - IP66, from mechanical influences - IK10, operating temperatures from -40 °C… +60 °C, lightning protection - TVS 4000 V.

Functionality

Built-in microphone.
Motion detection, people.
Detection of crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 25 m.
Compression H.265+, H.265, H.264, bitrate - 8 Mbps

Basics

TR-D3151IR2 v2 3.6 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Streams at 25 frames per second. Equipped with a fixed lens (focal length - 2.8 mm, horizontal viewing angle - 96°, vertical - 69°, aperture - F / 1.8), RJ-45 network port, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 5.8 W. Size - Ø116.10×96.51 mm.

Documentation

TR-D3151IR2v2_passport_en.pdf
