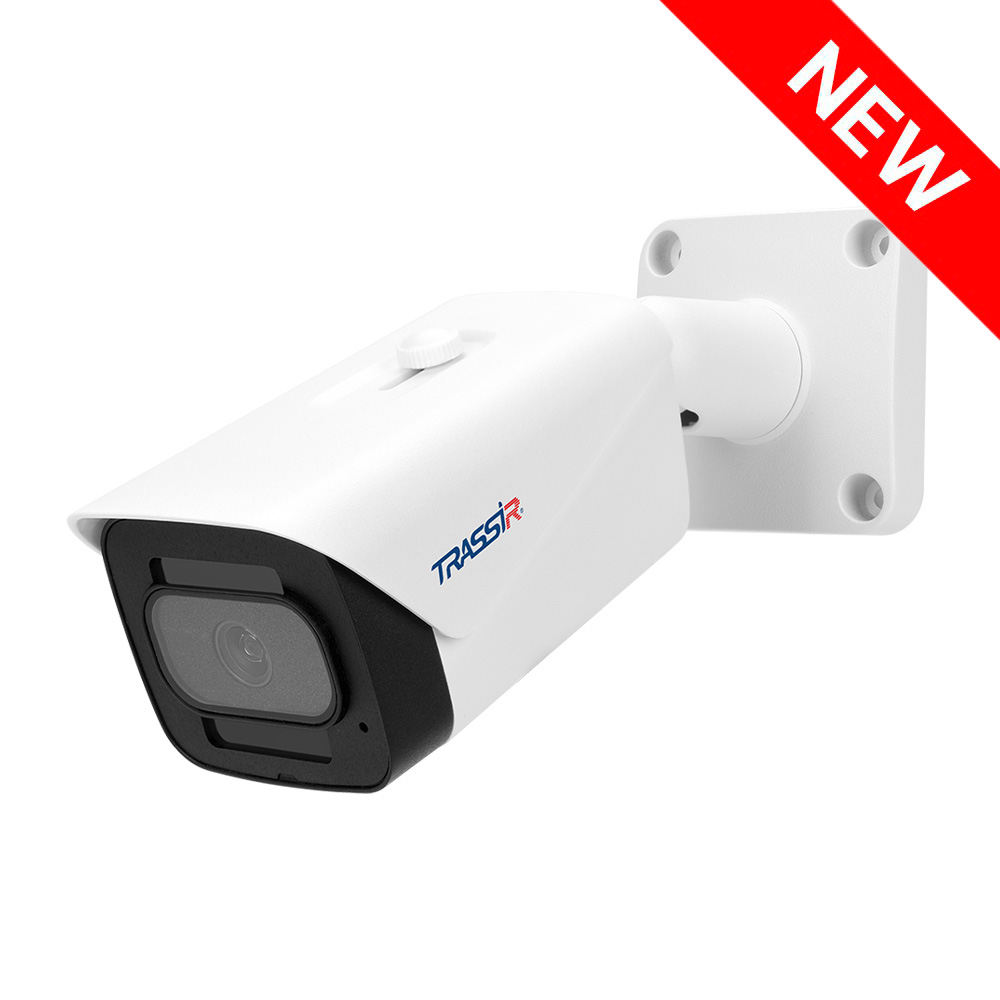

TR-D2453WDZIR7LPR "AutoPass" APC

Book A Demo How To Buy

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

WDR (140 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

up to 70 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Bullet

Maximum video output resolution:

2688x1536

Image sensor:

1/1.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

0.40 / 0.49

Sensitivity(Lux):

0.001Lux (F1.3)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

10.1Вт

Dimensions (mm):

233 x 82.4 x 76

Power consumption, Watt:

DC: 7.6Вт PoE: 10.1Вт

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H105°-55.3°, V49.1°-27.6°

Video compression:

H.265 / H.265+ / H.264 / H.264+

Overview

TR-D2453WDZIR7LPR "AutoPass" APC

The AutoPass software suite enables vehicles to access restricted areas using license plate recognition technology, with an accuracy rate of 98–99%.
The automatic license plate recognition system allows tracking of vehicles of interest from archives using screenshots and video fragments.
The software supports logging, detailed reporting, hierarchical classification of recognized license plates into groups, and integration with security systems, including access control systems and fire alarm systems (such as barriers and gates).

The hardware and software complex (HSC) "AutoPass" includes the following components:

TR-D2453WDZIR7LPR video camera
License plate and emergency-vehicle analytics module, developed in-house by TRASSIR and integrated directly into the camera.
Integration with TRASSIR loggers

Currently, the camera only works with TRASSIR recorders/servers. Compatible devices include:

Supported platforms

UltraStation and NeuroStation families, including modifications.
MiniNVR AF/AnyIP/AnyIP PRO and DuoStation AF/AnyIP/AnyIP PRO families, including modifications.
NVR-7800R/X family, including modifications.
MiniNVR 32XX and DuoStation 34XX families, including modifications.
MiniNVR 42XX and DuoStation 44XX, including modifications.
QuattroStation, including modifications.
(Please check with your manager for compatibility with other models).

Performance

The total processing time for one frame should not exceed 200 milliseconds.

Request authorization

All interaction with vehicle detection methods must be performed by a user with administrator rights.

Recognition accuracy

Up to 99% (approximately one incorrect detection per 100), provided that viewing requirements are met: sufficient lighting, suitable angle, and minimal field-of-view obstruction.

The recognition algorithm is based on the updated version of the AutoTRASSIR 5 module.

Highly accurate license plate recognition. The new module reduces false positives caused by inscriptions, advertisements, or phone numbers on vehicles, using a dedicated neural network for license plate detection. It also recognizes plates of various colors.
Recognition of all types of vehicles. AutoPass can detect plates on motorcycles, cars, vans, trucks, buses, and emergency vehicles.
Multi-country recognition. AutoPass automatically recognizes license plates from all supported countries - Russia, Kazakhstan, Turkey, UAE, Saudi Arabia, Romania, Spain, Ecuador, and India - simultaneously. The new algorithm also successfully recognizes two-line license plates.
Reliable vehicle entry detection. AutoTRASSIR detects every vehicle within the camera's field of view using a dedicated neural network.
Flexible module configuration. The detector can be customized to suit specific conditions of any facility.
