TR-D2121IR3 v7 2.8
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 35 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
2MPForm factor:
BulletMaximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.8Net Weight (kg):
0.460 / 0.565Sensitivity(Lux):
0.005Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP67IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
5.6WDimensions (mm):
184.7 x 66.5 x 63.05Power consumption, Watt:
DC: 3.8W PoE: 5.6WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H110°±5°, V60°±5°Video compression:
Н.265+ / Н.265 / H.264

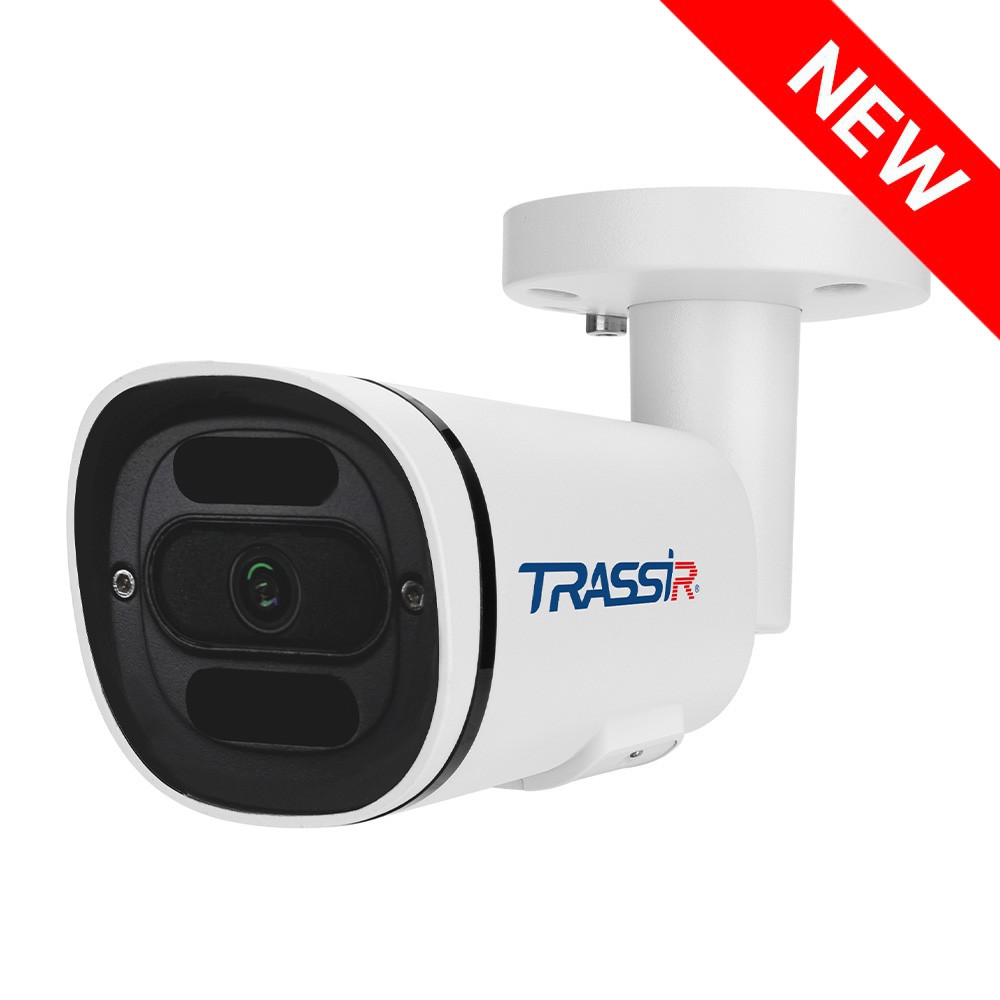

The TRASSIR TR-D2121IR3 v7 2.8 is a 2 MP (2560×1920) IP camera designed for outdoor use in areas with direct public access, providing reliable performance year-round, day or night. Its metal housing is IP67-rated for protection against dust and moisture. The camera operates in a wide temperature range from -40 °C to +60 °C and features 4000 V TVS lightning protection. The built-in IR illumination has a range of up to 35 meters.
Parameters:
- Detection capabilities: people, vehicles, line crossing, and area entry/exit
- Real WDR 120 dB – reduces the impact of high-contrast lighting for improved image quality
- 3D DNR – spatial noise reduction for clearer images in low light
- Corridor mode – optimized for vertically oriented scenes
- 1/2.8" CMOS sensor with 0.005 lx minimum illumination
- Fixed 2.8 mm lens with a 110°±5° horizontal and 60°±5° vertical field of view, F/1.6 aperture
- Mechanical IR cut filter – blocks infrared light when sufficient visible light is present
- Video compression: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 3.8 W
- Dimensions: Ø184.7 × 66.5 × 63.05 mm
- Weight: 460 g
TR-D2121IR3 v7 2.8.pdf
