TR-D2183ZIR6 v3 2.7-13.5

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

30

Electronic shutter speed:

1/3 ~ 1/10 000 s

IR range:

60m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

8MP

Form factor:

Bullet

Wi-Fi:

-

Maximum video output resolution:

3840x2160

Image sensor:

1/2.7" CMOS

Bitrate (Mb/sec):

10

Power supply:

12V DC

Lens (mm):

2.7 - 13.5

Net Weight (kg):

0.726

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø74.5 x 215.8

Power consumption, Watt:

8.4

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview

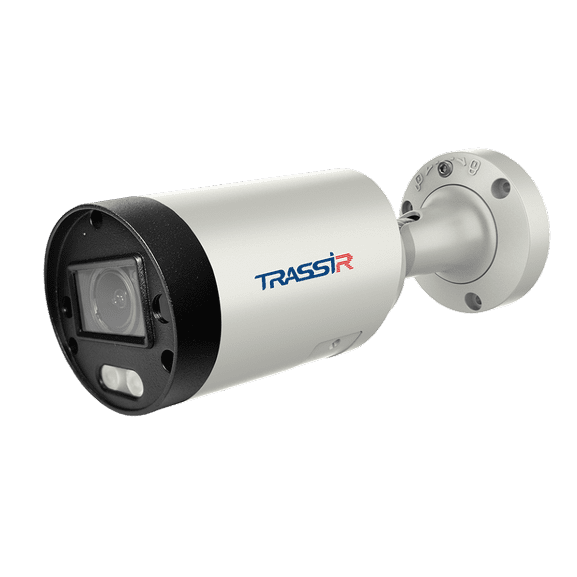

8 MP (3840×2160) IP camera TRASSIR TR-D2183ZIR6 v3 2.7–13.5 comes in a metal housing protected from moisture and dust according to IP67 standard, which, in combination with an operating temperature range of -40 °C ... +60 °C, provides a stable operation of the device on the street at any time of the year.


Functionality


  • Built-in microphone.

  • IR illumination with a range of 60 m.

  • Motion detection, virtual line crossing, area intrusion, area exit, abandoned and missing objects, loitering, crowd, parking, sound events, defocus, scene change.

  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.

  • 3D DNR - spatial noise reduction.

  • Corridor mode - vertically oriented resolution to reduce blind spots.

  • Defog - contrast enhancement to eliminate the effect introduced by fog, smoke.

  • BLC - software correction of the overexposed background.

  • Lightning protection (TVS 4000 V).

  • Compression H.265+, H.265, H.264+, H.264. Bitrate - 10 Mbps.

  • Broadcast speed and resolution of the main stream - 15 fps 3840 × 2160, 25 fps 2592 × 1944, 2560 × 1440, 2304 × 1728, 2048 × 1536, 1920 × 1080, 1280 × 960, additional - 15 fps 1280 × 720, 704 × 576 , 352×288.



Basics


TR-D2183ZIR6 v3 2.7–13.5 is built on a 1/2.7-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Equipped with 2.7 ~ 13.5mm motorized lens, 113° ~ 31° horizontal, 58° ~ 17° vertical, F/1.3 aperture, RJ-45 network port, audio in, audio out, alarm in, alarm out, microSD slot up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 11.64 W. Size - Ø74.5×215.8 mm. Weight - 726 g
