TR-D2251WDIR4W v2 3.6

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Resolution:

5MP

Form factor:

Bullet

Wi-Fi:

Yes

Maximum video output resolution:

2560x1440

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

3.6

Net Weight (kg):

0.460

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

184.3 x 67.3 x 63.9

Power consumption, Watt:

5.3

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview

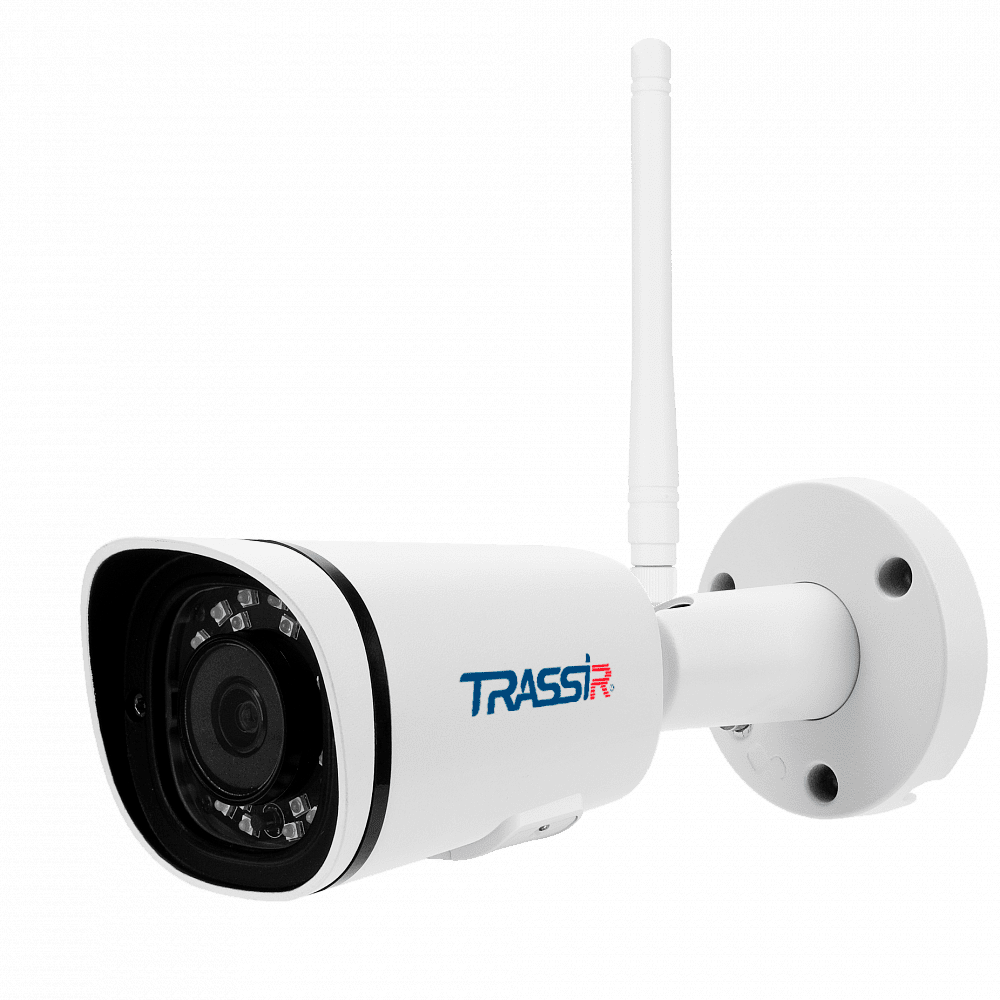

5 MP (2592×1920) IP camera TRASSIR TR-D2251WDIR4W v2 2.8 is adapted for year-round outdoor operation: body protection against moisture and dust - IP67, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 V. Equipped with a Wi-Fi module for wireless data transmission.

Functionality

  • Motion detection, faces (optional), cars.
  • People counting.
  • Detection of virtual line crossing, area intrusion, area exit, loitering.
  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor mode - hardware support for vertical resolution.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • BLC - backlight compensation.
  • IR illumination with a range of 40 m.
  • Compression H.265+, H.265, H.264+, H.264.

Basics

TR-D2251WDIR4W v2 2.8 is equipped with a lens with a fixed focal length of 2.8 mm, horizontal 91°, vertical 66°, F/1.8 aperture. Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. The maximum power consumption is 6.5 W. Size - 184.3 × 67.3 × 63.9 mm. Weight - 460 g.
