TR-D8281WDIR4 2.8

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Resolution:

8MP

Form factor:

Sphere

Wi-Fi:

-

Maximum video output resolution:

3840x2160

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

13

Power supply:

12V DC

Lens (mm):

2.8

Net Weight (kg):

0.330

Sensitivity(Lux):

0,005

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

Case material:

Metal

Dimensions (mm):

103.5x82.4

Power consumption, Watt:

7.1

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview

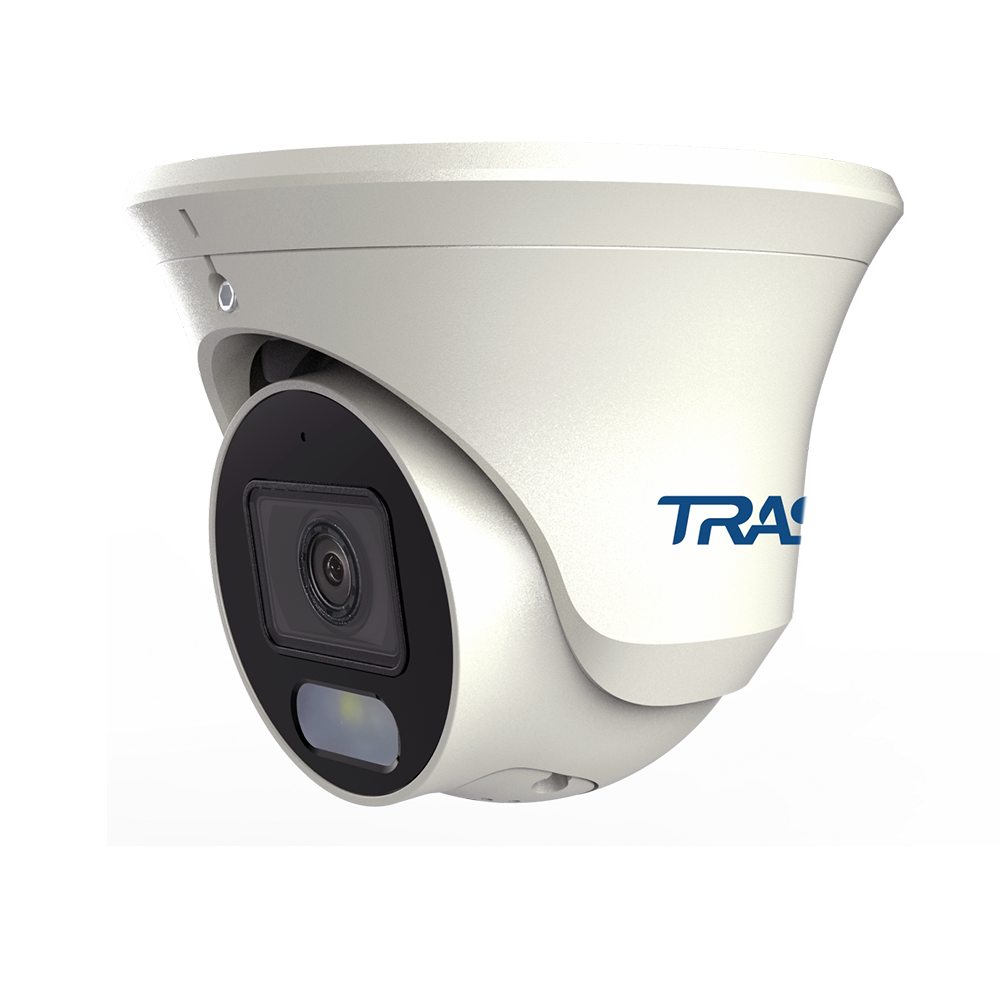

8 MP (3840×2160) IP-camera TRASSIR TR-D8281WDIR4 2.8 is adapted for outdoor use under the direct influence of precipitation — regardless of the time of year and day: the body is protected from dust and moisture according to the IP67 standard, operating temperatures from -40 °C… +60 °C, lightning protection - TVS 6000 V, range of the integrated IR illumination - 40 m.


Functionality

  • Detection of movement, persons, crossing a virtual line, abandoned objects; counting those who crossed the line.
  • Detection of intrusion into the zone, exit from the area (with filtering of people and vehicles).
  • Built-in microphone.
  • Additional LED-backlight operating in strobe mode.
  • Day/Night with ICR: in sufficient light, the filter refracts IR rays, normalizing color reproduction, and in the dark it shifts away from the sensor to increase its sensitivity and backlight efficiency.
  • WDR 120 dB - Reduces the impact of changes in light levels on image quality.
  • 3D DNR - spatial noise reduction.
  • BLC - backlight compensation.
  • Defog - Enhances contrast to reduce the effect caused by fog or smoke.
  • Compression H.264, H.265, H.264+, H.265+.
  • Main stream resolution - 3840x2160, 3200x1800, 3072x1728, 2560x1440, 1920x1080; additional - 1280×720, 704×576, 352×288.
  • The frame rate of the main stream is 15 fps (WDR on 8 MP), 20 fps (WDR off 8 MP, 6 MP), 25 fps (5 MP and below), additional - 20 fps. Bitrate - 13 Mbps.

Basics

The TR-D8281WDIR4 2.8 is based on a high-sensitivity (0.005 lux) 1/2.8-inch Sony Starvis CMOS sensor. Equipped with a lens with a fixed focal length of 2.8 mm, aperture F / 1.8, horizontal viewing angle of 106 °, vertical - 58 °. Interfaces: RJ-45, audio output, audio input, alarm output, alarm input, microSD card slot up to 128 GB. Power supply - DC 12 V, PoE. Power - 7.3W max. Size - Ø103.5×82.4 mm, weight - 330 g.
