TR-D8153ZIR4 v7 2.7–13.5
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 40 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
SphereMaximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.7 - 13.5 (motorzoom)Net Weight (kg):
0.40 / 0.49Sensitivity(Lux):
0.003Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
12.8WDimensions (mm):
Ø120 x 110.8Power consumption, Watt:
DC: 10.1W PoE: 12.8WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H84°, V60°Video compression:
Н.265+ / Н.265 / H.264

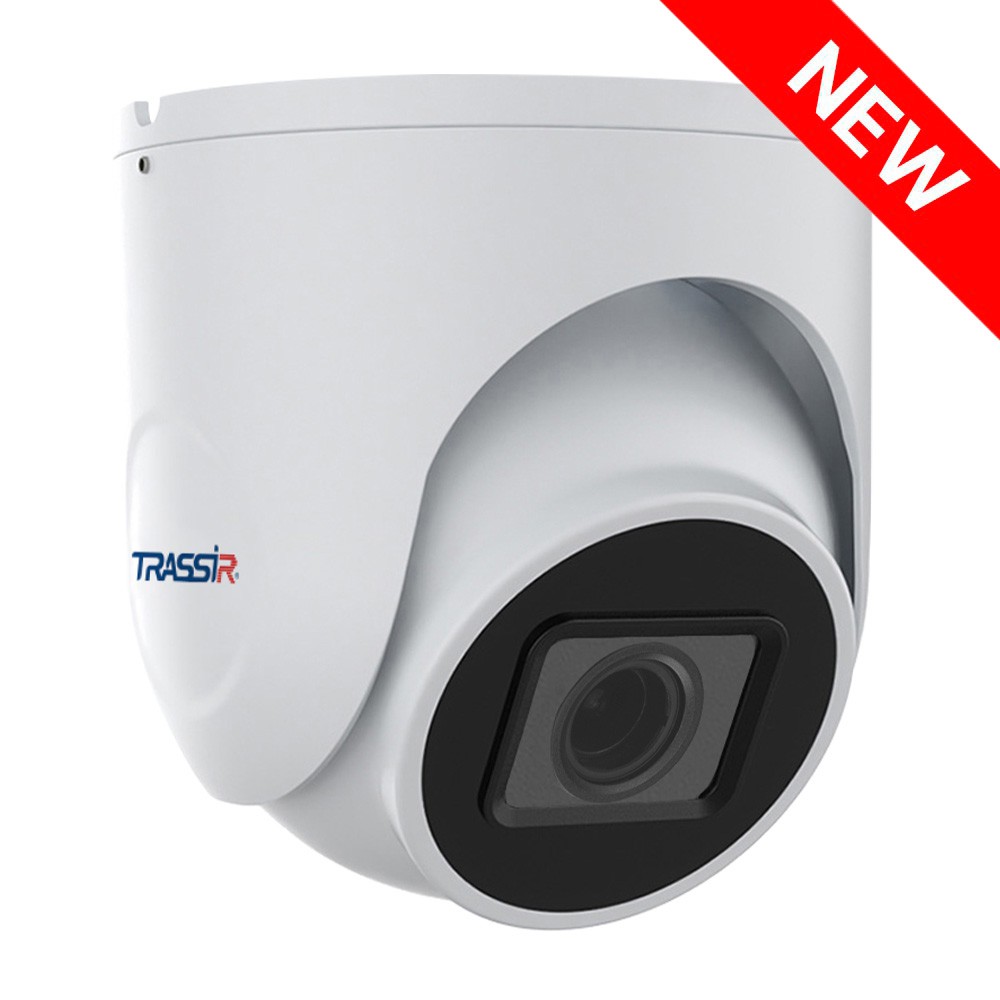

The TRASSIR TR-D8153ZIR4 v7 2.7–13.5 is a 5 MP (2560×1920) IP camera built for outdoor use in direct access locations, ensuring reliable operation throughout the year and day. It features a robust metal housing with IK10 impact protection and IP66-rated resistance to dust and moisture. The camera works in temperatures ranging from –40 °C to +60 °C and includes 4000 V TVS lightning protection. Its integrated IR illumination supports night vision up to 40 meters.
Parameters:
- Detection of people, vehicles, line crossing, and area entry/exit
- WDR 120 dB – enhances image quality in multi-contrast lighting
- 3D DNR – spatial noise reduction for clearer images
- Corridor mode – vertical video orientation to minimize blind spots
- 1/2.8" CMOS sensor with 0.003 lx sensitivity
- Motorized varifocal lens (2.7–13.5 mm), horizontal viewing angle: 91°–29°, vertical viewing angle: 69°–22°, aperture: F/1.6
- Mechanical IR-cut filter – blocks infrared light in sufficient lighting conditions
- Video compression: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 12.8 W
- Dimensions: Ø120.0 × 110.8 mm
- Weight: 400 g
