TR-D2B5 v3 3.6

Technical specifications

WDR:

RWDR 105 dB

IR range:

Up to 30

Resolution:

2MP

Form factor:

Bullet

Wi-Fi:

-

Maximum video output resolution:

1920x1080

Image sensor:

1/2.9" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.39 / 0.49

Sensitivity(Lux):

0.005Lux (F1.8)

Ingress protection:

IP67

Dimensions (mm):

152.1 x 68.3 x 62.9

Power consumption, Watt:

DC: 3.5W PoE: 4.5W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Video compression:

H.264/H.264+/H.265/H.265+
Overview

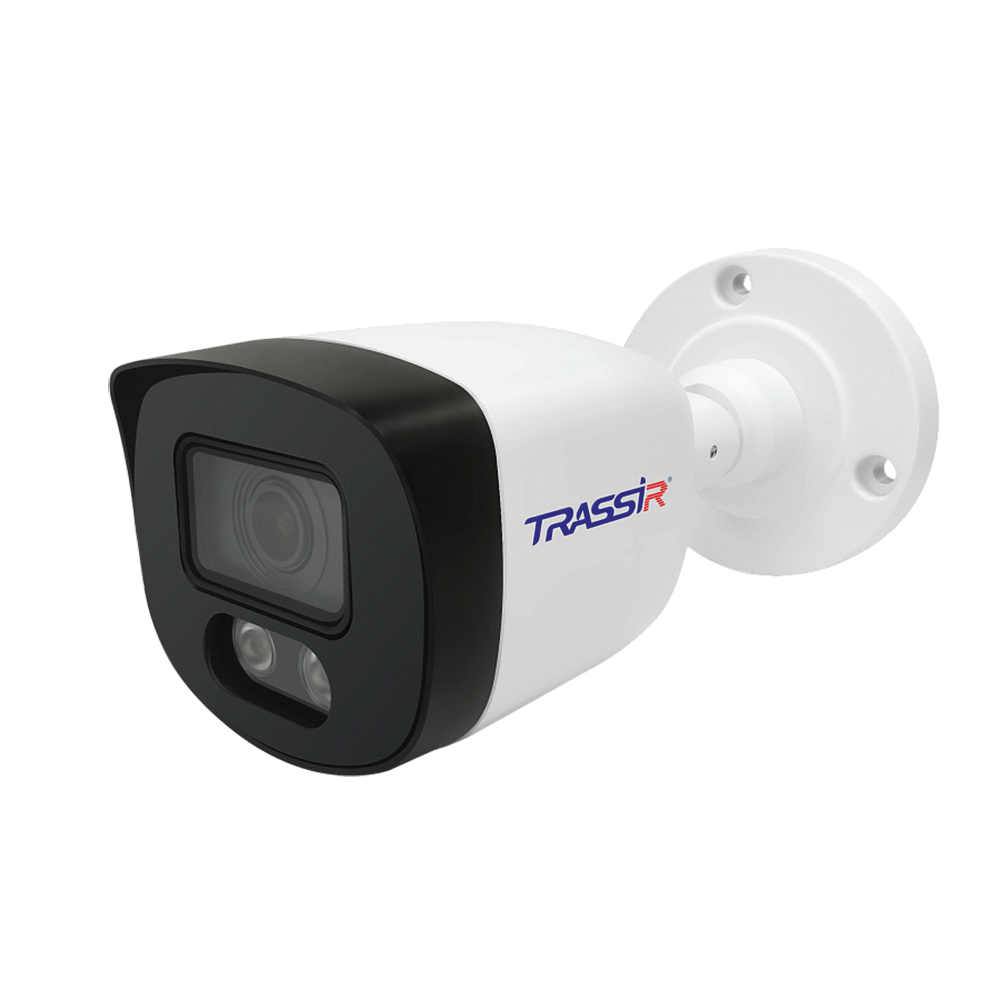

2 MP (1920×1080) IP Camera TRASSIR TR-D2B5 v3 3.6 is adapted for year-round outdoor use. It features protection against moisture and dust to the IP67 standard and can operate in a temperature range of –40 °C to +60 °C. Additionally, it has TVS 4000 V lightning protection. This camera is suitable for night surveillance, equipped with built-in IR illumination with a range of 30 meters.


Functionality:

· Detection: motion detection, people detection, line crossing detection, and area entry/exit detection.

· DWDR: digital wide dynamic range for image processing in poor lighting conditions.

· BLC: backlight compensation.

· ROI: region of interest.

· Day/Night Mode: with a mechanical IR filter that shifts to infrared sensitivity in low light conditions.

· Compression: supports H.265+, H.265, and H.264 codecs.


Basics
The TR-D2B5 v3 3.6 is built on a 1/2.9" CMOS sensor with a sensitivity of 0.005 lux. It is equipped with a fixed focal length lens of 3.6 mm, providing a horizontal field of view of 81° and a vertical field of view of 44°, with an aperture of F/1.8. The camera can be powered by a 12V DC source or via PoE (Power over Ethernet). The maximum power consumption is 3.4 watts. The dimensions are 152.59×67.55×62.93 mm. Weight: 390 grams.
