TR-D2D5 v3 3.6

Technical specifications

WDR:

RWDR 105 dB

Resolution:

2MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

1920x1080

Image sensor:

1/2.9" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.39 / 0.49

Sensitivity(Lux):

0.005Lux (F1.8)

Ingress protection:

IP66

Dimensions (mm):

Ø95 x 63

Power consumption, Watt:

DC: 2.1W PoE: 2.4W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Video compression:

Н.265+ / Н.265 / H.264
Overview

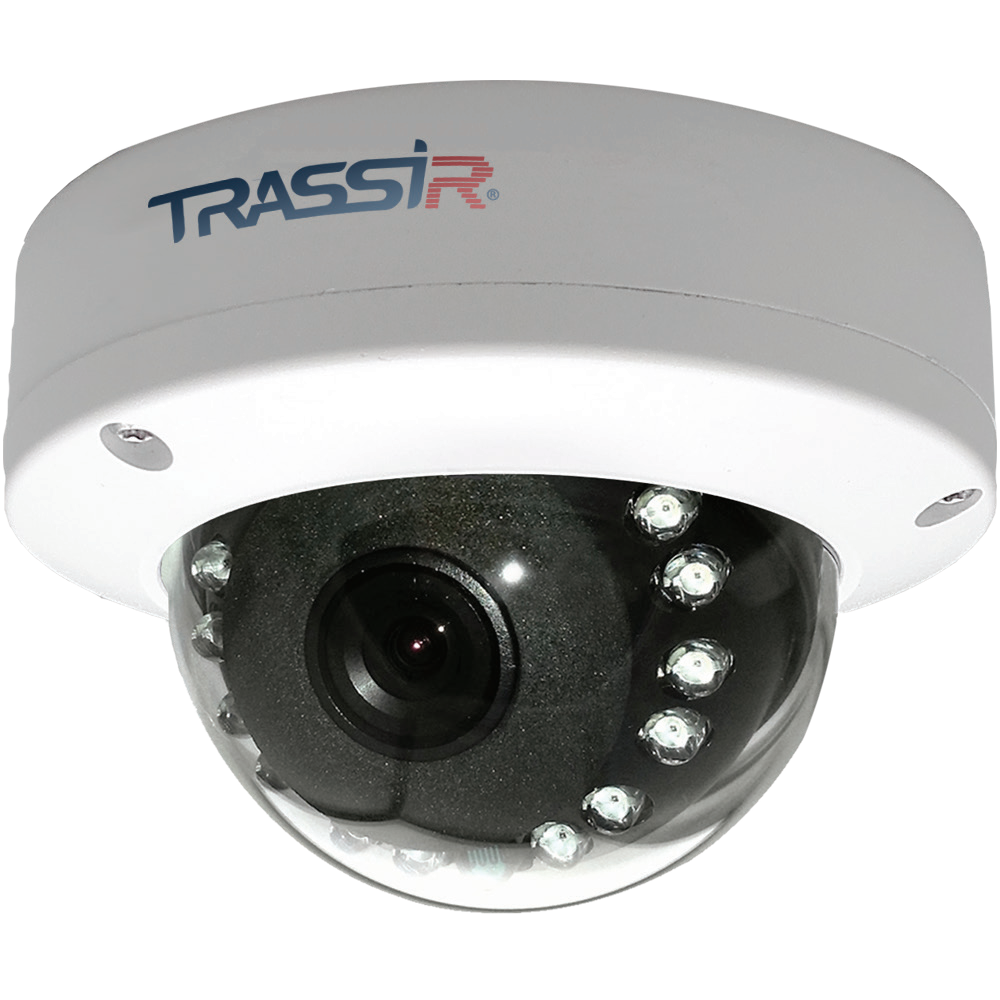

The 2 MP (1920×1080) IP Camera TRASSIR TR-D2D5 v3 3.6 is adapted for year-round outdoor use in areas with direct access. It features protection against moisture and dust to the IP66 standard, mechanical impacts to the IK10 standard, operates in temperatures ranging from –40 °C to +60 °C, and has TVS 4000 V lightning protection. Suitable for night surveillance, it comes equipped with built-in IR illumination with a range of 15 meters.


Functionality:

· Detection: motion, people, line crossing, area entry, and exit.

· DWDR: image processing in low light conditions.

· BLC: backlight compensation.

· ROI: region of interest.

· Day/Night Mode: with a mechanical filter allowing infrared radiation transmission in sufficient lighting.

· Compression: H.265+, H.265, H.264.


Basics:
The TR-D2D5 v3 3.6 is built on a 1/2.9" CMOS sensor with a sensitivity of 0.005 lux. It is equipped with a fixed focal length lens of 3.6 mm, providing a horizontal field of view of 81° and a vertical field of view of 44°, with an aperture of F/1.8. The camera can be powered by a 12V DC source or via PoE. The maximum power consumption is 2.4 watts. The dimensions are Ø95×63 mm. Weight: 295 grams.
