TR-D8151IR3 v7 3.6
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 35 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
SphereMaximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
3.6Net Weight (kg):
0.38 / 0.48Sensitivity(Lux):
0.003Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
7.6WDimensions (mm):
Ø93 x 92.2Power consumption, Watt:
DC: 4.3W PoE: 7.6WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H84°, V60°Video compression:
Н.265+ / Н.265 / H.264

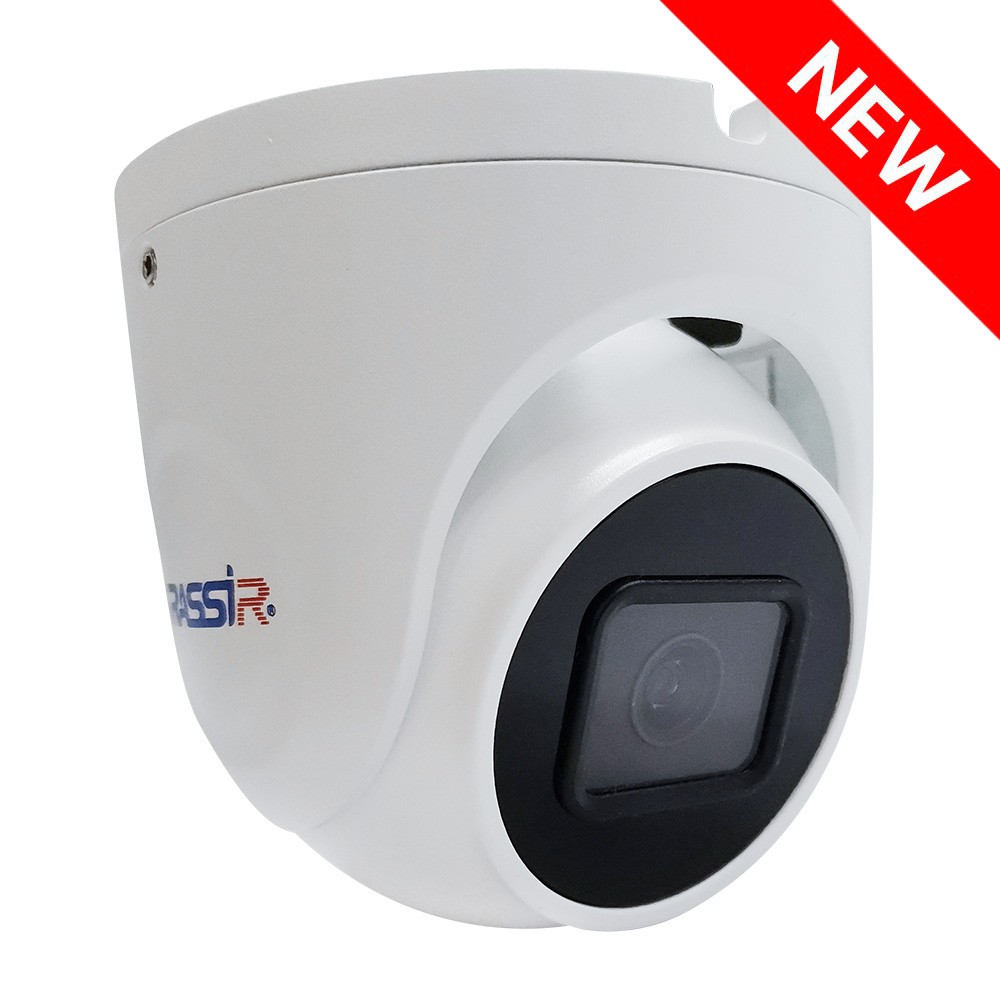

The TRASSIR TR-D8151IR3 v7 3.6 is a 5 MP (2560×1920) IP camera engineered for outdoor use in areas with direct public access, providing stable performance in all weather and lighting conditions. The camera features a durable metal housing with IK10 impact resistance and IP66 protection against dust and moisture. It operates in extreme temperatures from –40 °C to +60 °C and includes 4000 V TVS lightning protection. Integrated IR illumination supports night surveillance up to 35 meters.
Parameters:
- Detection of people, vehicles, line crossing, and area entry/exit
- WDR 120 dB – enhances image clarity in high-contrast lighting conditions
- 3D DNR – spatial noise reduction for cleaner, more detailed footage
- Corridor mode – vertically oriented video to minimize blind spots
- 1/2.8" CMOS sensor with 0.003 lx low-light sensitivity
- Fixed lens (3.6 mm), horizontal viewing angle: 84°, vertical viewing angle: 60°, aperture: F/1.6
- Mechanical IR-cut filter – blocks infrared light in well-lit conditions for accurate color reproduction
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supports up to 256 GB (hot-swappable)
- Interfaces: network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 7.6 W
- Dimensions: Ø93.0 × 92.2 mm
- Weight: 380 g
