TR-D3183ZIR5 v7 2.7-13.5

Book A Demo How To Buy

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/3 ~ 1/100,000 s

IR range:

up to 50 m

Digital noise Reduction:

3D DNR

Corridor mode:

Resolution:

8MP

Form factor:

Dome

Maximum video output resolution:

3840x2160

Image sensor:

1/2.7" CMOS

Bitrate (Mb/sec):

up to 16Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5

Net Weight (kg):

0.820 / 1.020

Sensitivity(Lux):

0.006Lux (F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 2000V

Power PoE:

8.3W

Dimensions (mm):

Ø142.2 x 116.5

Power consumption, Watt:

DC: 7W PoE: 8.3W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR / FTC

Field of view:

H101°-32°, V58°-18°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Overview

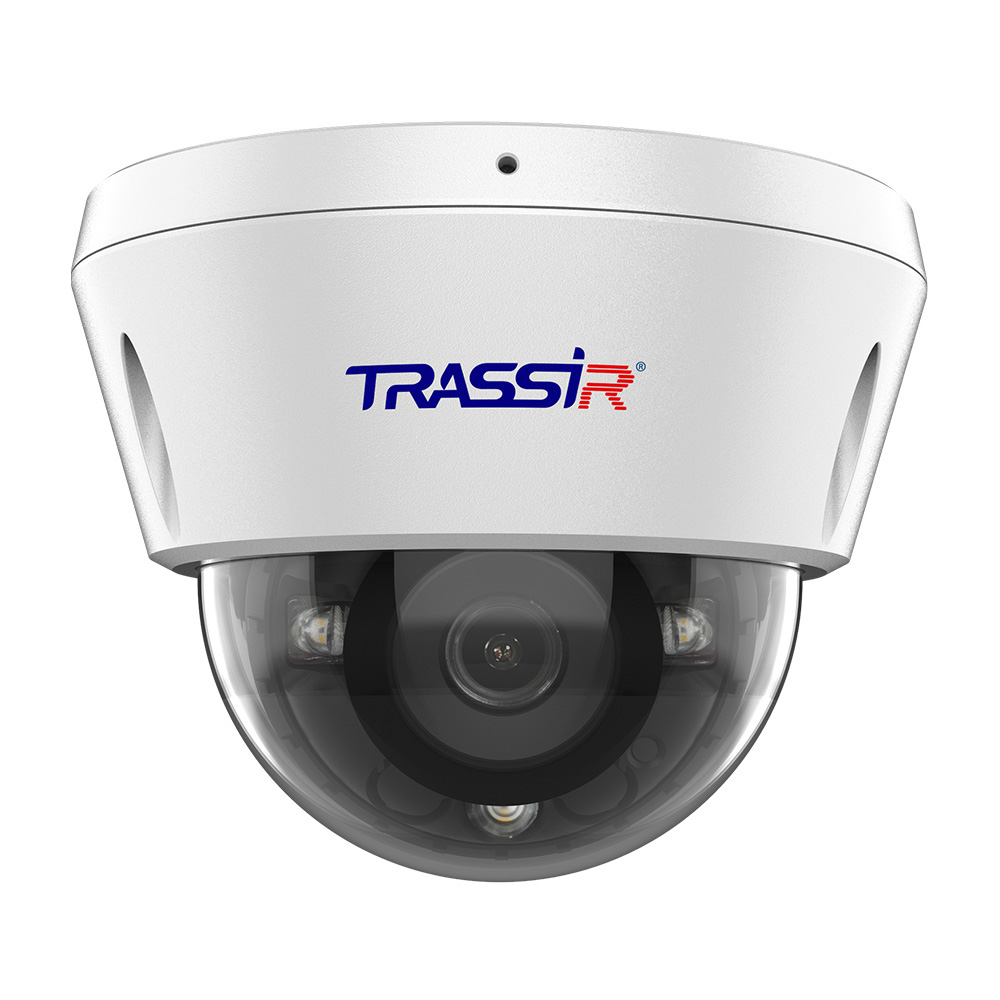

TRASSIR TR-D3183ZIR5 v7 (2.7–13.5 mm)

TRASSIR TR-D3183ZIR5 v7 2.7–13.5 is a dome camera with a motorized lens designed for 24/7 outdoor video surveillance. Equipped with a 1/2.7" CMOS sensor, the camera delivers detailed images at a maximum resolution of 8 MP (3840 × 2160). The 2.7–13.5 mm motorized varifocal lens allows the focal length and focus to be adjusted to suit the desired viewing distance and monitoring area.

120 dB WDR and 3D DNR help maintain high-quality video in challenging lighting conditions, while the mechanical IR filter and sensitivity of 0.006 lux (F1.6) enhance low-light and nighttime surveillance. IR illumination reaches up to 50 m. Built-in analytics include line-crossing detection, area monitoring, and smart motion detection with object-type filtering.

The camera supports three streams and H.265+, H.265, H.264+, and H.264 video codecs, with a maximum bitrate of 16 Mbps. A HotSwap-enabled MicroSD card slot supports local storage capacities of up to 512 GB. Two-way audio communication is supported via the built-in microphone and line-in/line-out interfaces.

The camera's metal enclosure, IP67 and IK10 protection ratings, operating temperature range of -40°C to +60°C, and TVS 2000 V lightning protection ensure reliable operation in demanding outdoor environments. Power can be supplied via 12 V DC or PoE (802.3af). ONVIF and other network protocols enable integration with the TRASSIR system and third-party solutions.
