TR-D4151IR1 v2 3.6

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

25

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

15m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

3.6

Net Weight (kg):

0.310

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø102.20 x 56.38

Power consumption, Watt:

3.6

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264
Overview

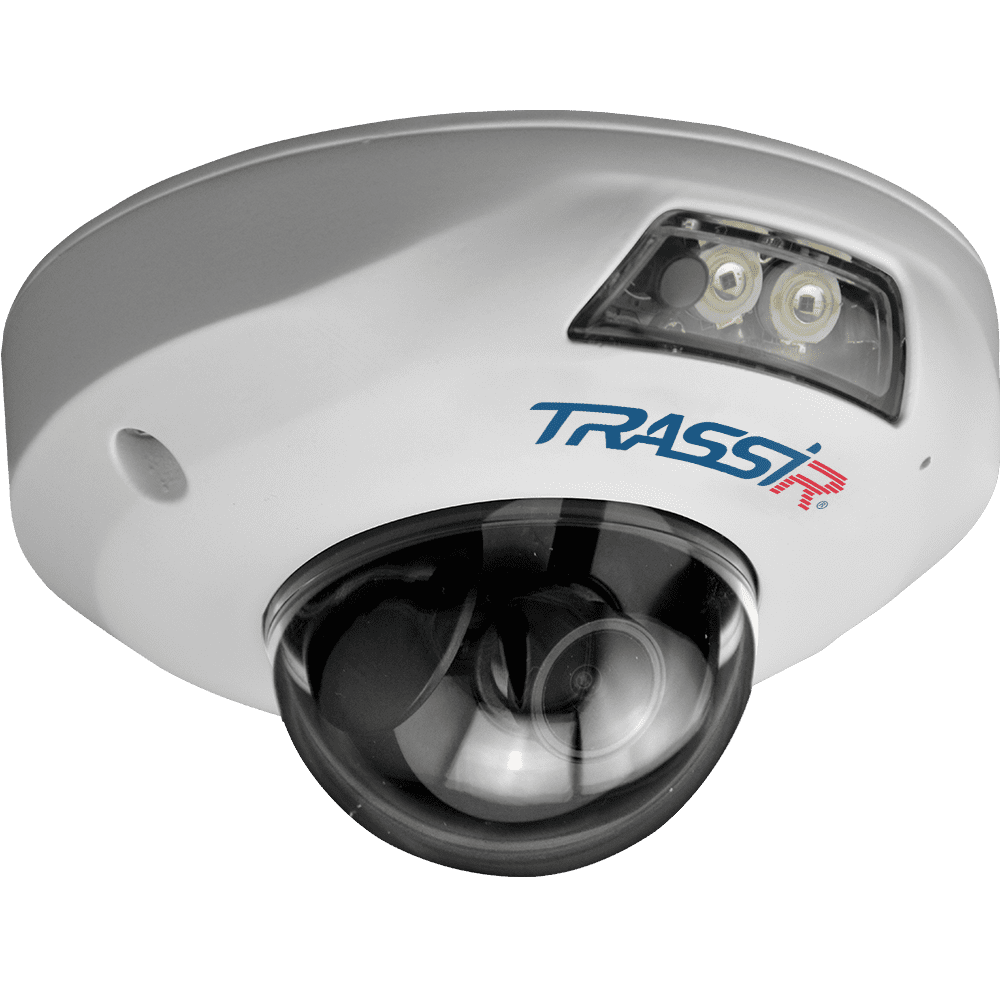

5 MP (2560 × 1920) TRASSIR TR-D4151IR1 v2 3.6 IP camera is adapted for outdoor use regardless of the season and the availability of the installation site: the metal case is protected from dust and moisture according to the IP66 standard, from mechanical influences - IK10, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 V. A set of analytical functions is provided: motion detection, people, virtual line crossing, intrusion into the area, exit from the area.



Functionality


  • Built-in microphone.
  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor mode - shooting in vertically oriented resolution.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • BLC - backlight compensation.
  • IR illumination with a range of 15 m.
  • Compression H.265+, H.265, H.264.


Basics


TR-D4151IR1 v2 3.6 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Streams at 25 frames per second. Bitrate - 8 Mbps. Equipped with a fixed lens (focal length - 2.8 mm, horizontal viewing angle - 96°, vertical - 69°, aperture - F / 1.8), RJ-45 network port, audio input, audio output, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 4 W. Size - Ø102.20×56.39 mm. Weight - 310 g.
