TR-D3251WDIR3W v2 2.8

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

25

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

30m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Dome

Wi-Fi:

Yes

Maximum video output resolution:

2592x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

2.8

Net Weight (kg):

0.450

Sensitivity(Lux):

0,005

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø116.1 x 96.5

Power consumption, Watt:

5.1

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview

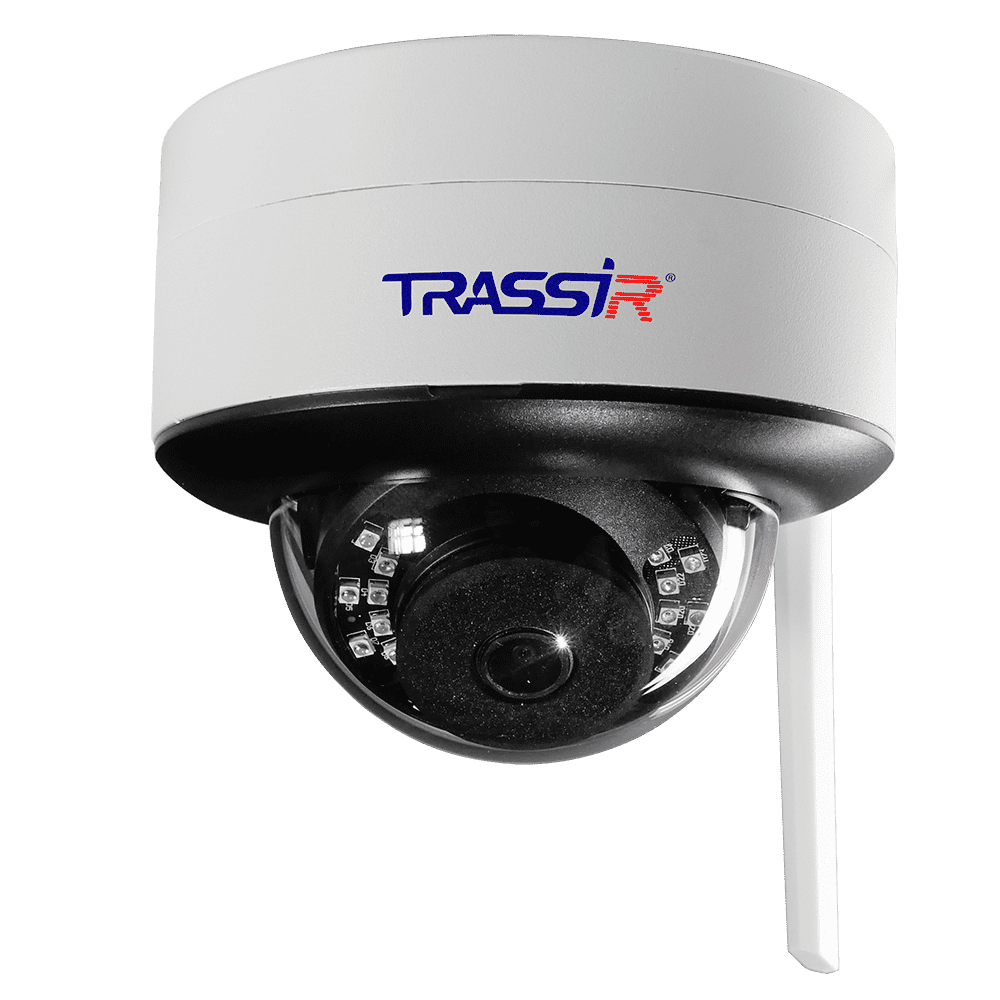

5 MP (2592×1920) IP-camera TRASSIR TR-D3251WDIR3W v2 2.8 is adapted for year-round outdoor operation in places of direct access: the case meets the standard of protection against moisture and dust IP66, against mechanical influences - IK10, operating temperatures from -40 °C... +60 °C, lightning protection - TVS 4000 V. Equipped with a Wi-Fi module for wireless data transmission and IR illumination (30 m range) for night video surveillance.

Functionality

  • Motion detection, faces (optional), cars, people counting.
  • Detection of virtual line crossing, area intrusion, area exit, loitering.
  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor mode - hardware support for vertical resolution.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • BLC - software correction of the overexposed background.
  • Compression H.265+, H.265, H.264+, H.264

Basics

TR-D3251WDIR3W v2 2.8 is equipped with a fixed lens (focal length - 2.8 mm, horizontal viewing angle - 91 °, vertical - 66 °, aperture - F / 1.8). Equipped with RJ-45 network port, audio input, audio output and integrated microphone, alarm input and alarm output, microSD slot up to 128 MB. Power Supply – 12V DC or PoE. Maximum power - 6.3 W. Size - Ø116.1×96.5 mm. Weight - 450 g.
