TR-D4251WDIR2 v2 3.6

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Resolution:

5MP

Form factor:

Dome

Wi-Fi:

-

Maximum video output resolution:

2592x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

3.6

Net Weight (kg):

0.310

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø102.2 x 56.4

Power consumption, Watt:

3.9

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview

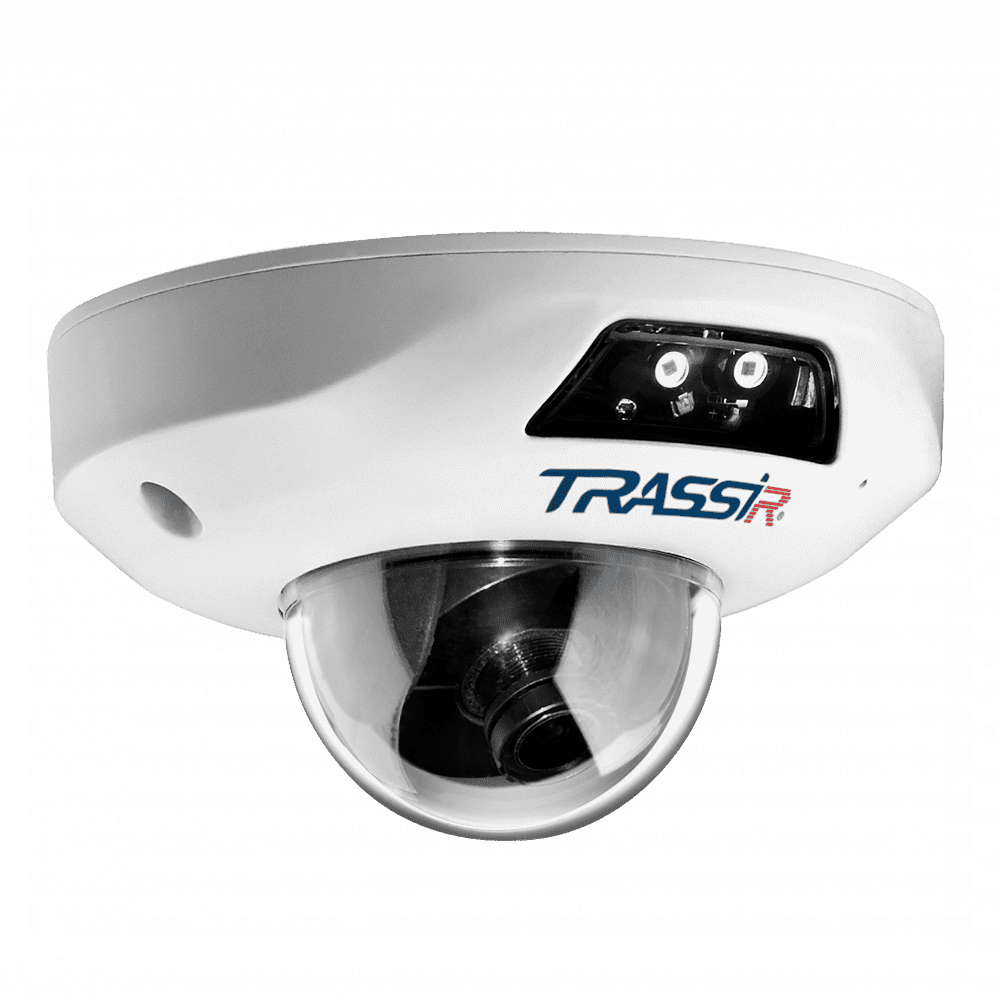

5 MP (2592×1920) IP-camera TRASSIR TR-D4251WDIR2 v2 3.6 is adapted for year-round outdoor operation in places of direct access: housing protection from moisture and dust - IP66, mechanical impact - IK10, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 V.

Functionality

Built-in microphone.
Motion detection, faces (optional), cars.
People counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase contrast to eliminate blur caused by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 20 m.
Compression H.265+, H.265, H.264+, H.264.
Bitrate - 8 Mbps, frame rate - 25 fps.

Basics

TR-D4251WDIR2 v2 3.6 is based on a 1/2.8" CMOS sensor with 0.003 lux sensitivity. It is equipped with a fixed focal length lens of 2.8 mm, a horizontal angle of view of 91°, a vertical angle of 66°, an aperture of F/1.8, an RJ-network port. 45, audio in, audio out, microSD slot up to 128 MB Supports day/night mode with ICR: when there is enough light, the filter blocks IR rays, optimizing color reproduction, and in the dark it mechanically moves away from the sensor to increase its sensitivity. - 12 V DC, PoE Maximum power - 4.6 W Size - Ø102.2 × 56.4 mm Weight - 310 g.
