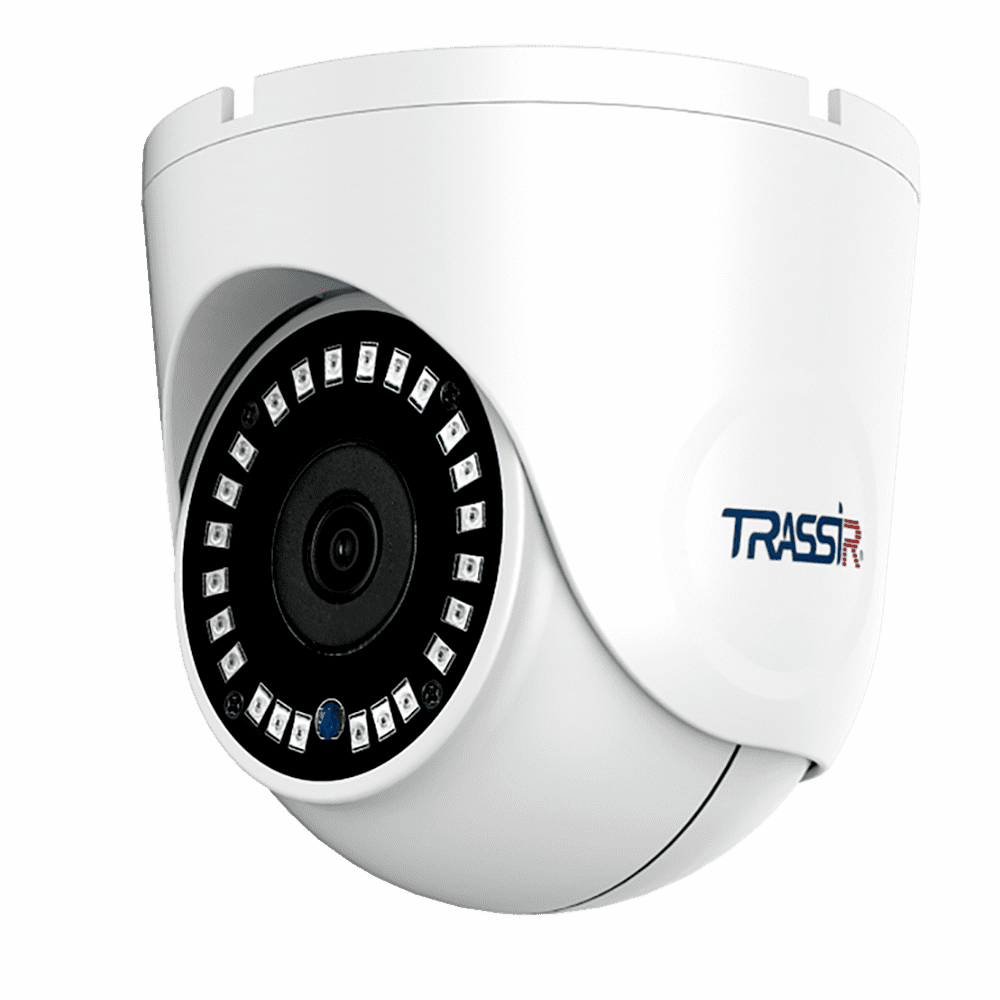

TR-D8151IR2 v2 3.6

Technical specifications

Audio:

Built-in microphone

WDR:

RWDR 120 dB

Frame rate:

25

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

25m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Sphere

Wi-Fi:

-

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

3.6

Net Weight (kg):

0.380

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø93 x 92.2

Power consumption, Watt:

4.9

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264
Overview
5 MP (2560 × 1920) IP camera TRASSIR TR-D8151IR2 v2 3.6 is adapted for outdoor use regardless of the season and location: protection against moisture and dust - IP66, mechanical impact - IK10, operating temperatures from -40 °C … +60 °C, lightning protection – TVS 4000 V.

Functionality

  • Built-in microphone.
  • Software motion detection, people.
  • Detection of crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor mode - shooting in vertically oriented resolution.
  • Defog - contrast enhancement to eliminate the effect introduced by fog, smoke.
  • BLC - backlight compensation.
  • IR illumination with a range of 25 m.
  • Compression H.265+, H.265, H.264.
  • Frame rate - 25 fps, bit rate - 8 Mbps.

Basics

TR-D8151IR2 v2 3.6 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Equipped with a lens with a fixed focal length of 2.8 mm, a horizontal angle of view of 96°, a vertical angle of 69°, an aperture of F / 1.8, an RJ-45 network port, a slot for microSD with a capacity of up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 5.5 W. Size - Ø93.0×92.2 mm. Weight - 380 g.
