TR-D9151IR2 v2 1.4

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

25

Electronic shutter speed:

1/2 ~ 1/1 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Fisheye

Wi-Fi:

-

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

1.4

Net Weight (kg):

0.380

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP65

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø120 x 58

Power consumption, Watt:

6.6

Working temperature, C°:

-30°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264
Overview

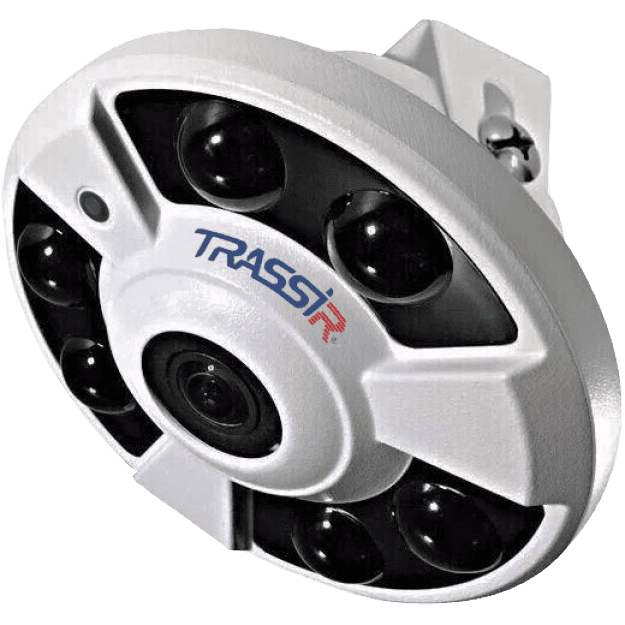

5 MP (2560 × 1920) TRASSIR TR-D9151IR2 v2 1.4 IP camera is adapted for year-round outdoor operation: body protection against moisture and dust - IP65, operating temperatures from -30 °C ... +60 °C, lightning protection - TVS 4000 V.

Functionality

  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - noise reduction.
  • Corridor mode - vertically oriented resolution to reduce the blind zone.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • BLC - digital backlight correction to enhance the visibility of shadowed objects.
  • IR illumination with a range of 25 m.
  • Compression H.265+, H.265, H.264.

Basics

TR-D9151IR2 v2 1.4 is based on a 1/2.8 inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Streams at 25 frames per second. Bitrate - 8 Mbps. Equipped with fisheye lens (1.4mm focal length, 180° field of view, F/1.8 aperture), RJ-45 network port, integrated microphone, audio in, audio out, alarm in, alarm out, microSD slot up to 128 GB . Power supply - DC 12 V, PoE. The maximum power consumption is 7.2 W. Size — Ø120×58 mm. Weight - 380 g.
