TR-D2152ZIR3 v2 2.8-8

TR-D2152ZIR3 v2 2.8-8

Book A Demo How To Buy

Technical specifications

Audio:

Built-in microphone

WDR:

RWDR 120 dB

Resolution:

5MP

Form factor:

Bullet

Wi-Fi:

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

Power supply:

12V DC

Lens (mm):

2.8-8

Net Weight (kg):

0.460

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

184.67x66.50x63.05

Power consumption, Watt:

5.9

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264

Overview

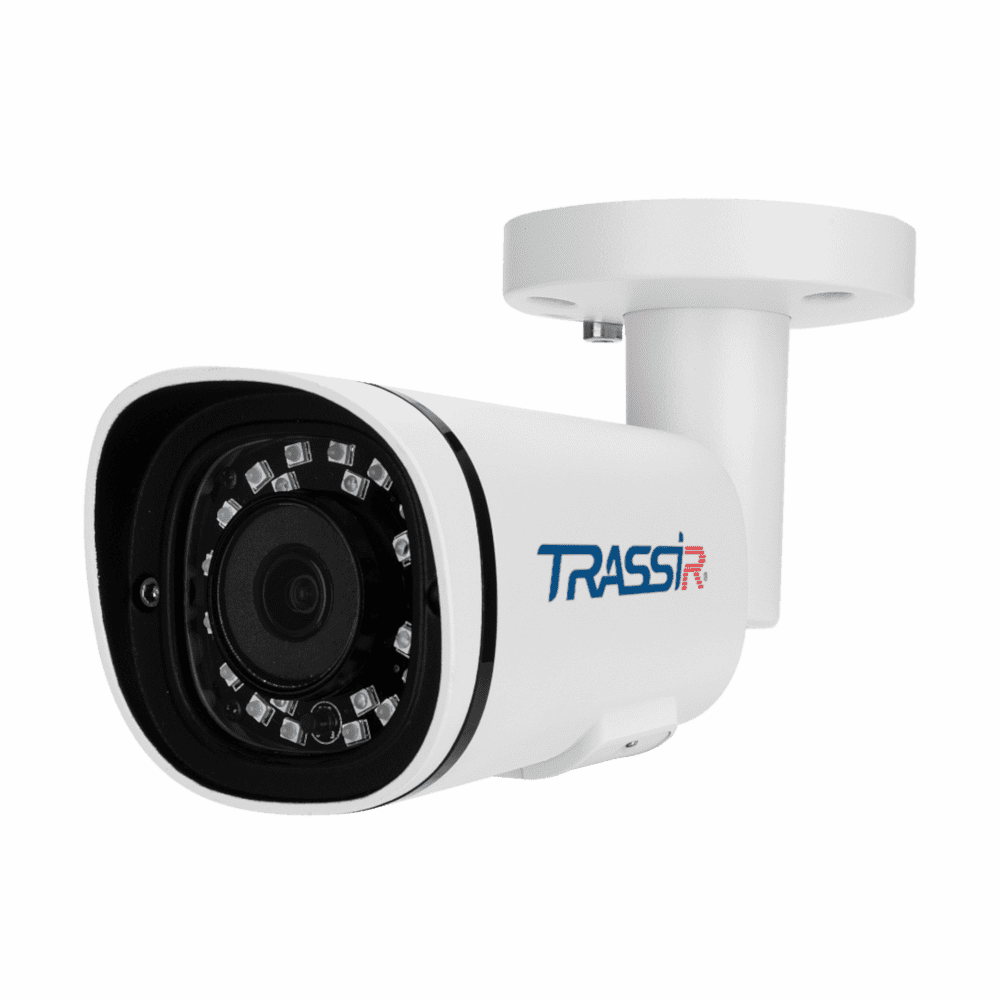

5 MP (2560 × 1920) TRASSIR TR-D2152ZIR3 v2 2.8–8 IP camera is adapted for outdoor use regardless of the season: housing protection against moisture and dust - IP67, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 V.

Functionality

Built-in microphone.
Motion detection, people.
Detection of crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 35 m.
Day/night mode with mechanical filter that refracts IR rays when there is enough light.
Compression H.265+, H.265, H.264, bitrate - 8 Mbps.

Basics

TR-D2152ZIR3 v2 2.8–8 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Streams at 25 frames per second. Equipped with a motorized lens (focal length - 2.8 ~ 8 mm, horizontal viewing angle - 83 ° ~ 50 °, vertical - 62 ° ~ 38 °, aperture - F / 1.8), RJ-45 network port, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 7.7 W. Size - 184.67 × 66.50 × 63.05 mm. Weight - 460 g.

Documentation

TR-D2152ZIR3v2_passport_en.pdf
