TR-D2181IR3 v2 3.6
Archive
Technical specifications
WDR:
RWDR 120 dBResolution:
8MPMaximum video output resolution:
3840x2160Image sensor:
1/2.7" CMOSBitrate (Mb/sec):
10Power supply:
DC 12 V, PoELens (mm):
3.6Net Weight (kg):
0.364Sensitivity(Lux):
0,005Ingress protection:
IP67Dimensions (mm):
64.8x64.8x165.3Power consumption, Watt:
13Working temperature, C°:
-40…+60Day/Night Mode:
Mechanic IR-filterNetwork interfaces:
RJ-45Overview

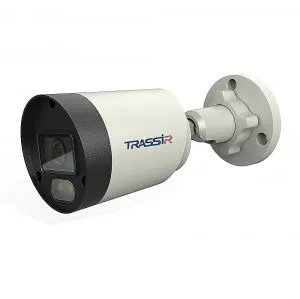

TRASSIR TR-D2181IR3 v2 (3.6 mm)
8 MP (3840 × 2160) IP-camera is designed taking into account the conditions of round-the-clock year-round outdoor operation: the metal case is protected from moisture and dust according to the IP67 standard, operating temperatures - –40 ° C ... +60 ° C, lightning protection - TVS 2000 V, range integrated lighting action - 35 m.
Functionality:
Basics:
TR-D2181IR3 v2 (3.6 mm) is equipped with a 3.6 mm fixed focal length lens, 91 ° horizontal field of view, 46 ° vertical field, F / 1.8 aperture. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 GB, a power connector. Power Supply - 12V DC or PoE. The maximum power consumption is 13 W. Dimensions - 165.3 × 64.8 × 64.8 mm. Weight - 364 g.
8 MP (3840 × 2160) IP-camera is designed taking into account the conditions of round-the-clock year-round outdoor operation: the metal case is protected from moisture and dust according to the IP67 standard, operating temperatures - –40 ° C ... +60 ° C, lightning protection - TVS 2000 V, range integrated lighting action - 35 m.
Functionality:
- - Built-in microphone.
- - Detection of people.
- - Motion detection.
- - Control of the area.
- - Finding abandoned items.
- - Virtual line crossing detection, crossing statistics.
- - WDR 120 dB - neutralizes the effect of changes in the level of illumination on the image quality.
- - 3D DNR - spatial noise reduction.
- - Corridor mode - vertical resolution shooting with an aspect ratio of 9:16.
- - Defog - increase the contrast to minimize the effect of fog and smoke.
- - ROI - fixing on the selected area and parallel reducing the resolution in the rest of the frame to optimize the bit rate.
- - BLC - Backlight Compensation.
- - Day / night mode with ICR, with sufficient illumination to block infrared rays to normalize color reproduction.
- - Compression with H.265 +, H.264 +, H.265, H.264 codecs.
- - Stream broadcasting speed with a resolution of 8 Mp - 15 fps.
Basics:
TR-D2181IR3 v2 (3.6 mm) is equipped with a 3.6 mm fixed focal length lens, 91 ° horizontal field of view, 46 ° vertical field, F / 1.8 aperture. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 GB, a power connector. Power Supply - 12V DC or PoE. The maximum power consumption is 13 W. Dimensions - 165.3 × 64.8 × 64.8 mm. Weight - 364 g.
Documentation
TR-D2181IR3v2 passport (eng).pdf
