Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Resolution:

8MP

Form factor:

Bullet

Maximum video output resolution:

3840x2160

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

Power supply:

12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

0.726

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

Case material:

Metal

Dimensions (mm):

215.8 x 74.5 x 74.5

Power consumption, Watt:

8.9

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Overview

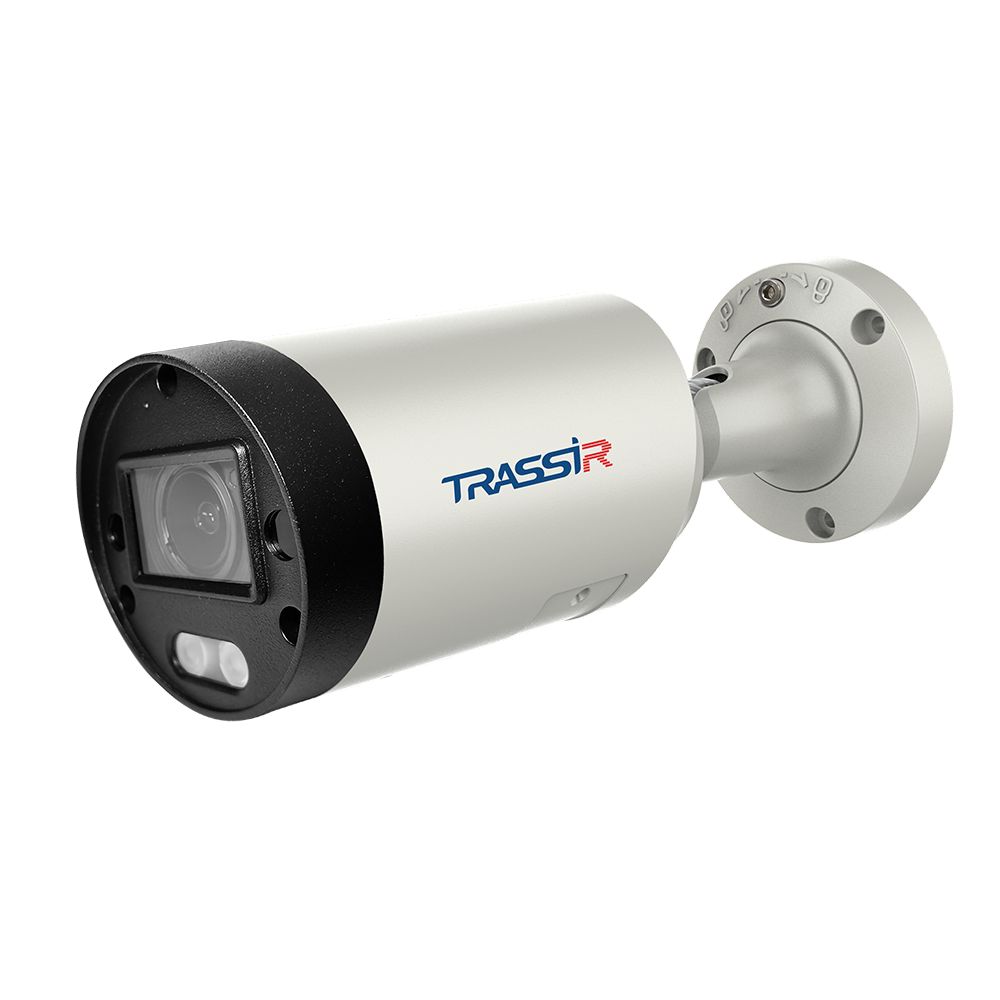

8 MP (3840×2160) IP camera TRASSIR TR-D2283WDZIR7 2.7–13.5 comes in a housing protected from dust and moisture according to the IP67 standard, which, coupled with operating temperatures from -40 °C ... +60 °C and TVS 6000 V lightning protection, provides stable year-round operation of the device on the street - under the direct influence of precipitation.

Functionality:

Built-in microphone.
IR illumination with a range of 70 m.
Detection of movement, faces, virtual line crossing (with counting), left objects.
Detection of intrusion into the zone, exit from the area (with filtering of people and vehicles).
Additional LED-backlight operating in strobe mode.
Day/Night mode with ICR: When there is enough light, the filter blocks infrared rays, and in the dark it moves away from the sensor to increase its sensitivity and illumination efficiency.
WDR 120 dB - minimizing the effect of different contrast lighting on picture quality.
3D DNR - noise reduction.
BLC - software correction of the overexposed background.
Defog - Enhances contrast to reduce the effect caused by fog or smoke.
Compression H.264, H.265, H.264+, H.265+.
Supported resolution: main stream - 3840x2160, 3200x1800, 3072x1728, 2560x1440, 1920x1080; additional - 1280x720, 704x576, 352x288.
Frame rate: main stream - 15 fps (WDR on 8 MP), 20 fps (WDR off 8 MP, 6 MP), 25 fps (5 MP and below), additional - 20 fps.
Bitrate - 13 Mbps.

Basics

The TR-D2283WDZIR7 2.7–13.5 is based on a 1/2.8-inch Sony Starvis CMOS sensor with 0.003 lux sensitivity. Comes with a motorized lens. Parameters: focal length - 2.7 ~ 13.5 mm, aperture - F / 1.3, horizontal viewing angle - 104 ° ~ 35 °, vertical - 56 ° ~ 20 °. Interfaces: RJ-45, audio output, audio input, alarm output, alarm input, microSD card slot up to 128 GB. Power supply - DC 12 V, PoE. Power - up to 9 watts. Size - 215.8 × 74.5 × 74.5 mm, weight - 726 g.
