TR-D8181IR3 v3 2.8

Technical specifications

Audio:

Built-in microphone

WDR:

RWDR 120 dB

Frame rate:

30

Electronic shutter speed:

1/3 ~ 1/10 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

8MP

Form factor:

Sphere

Wi-Fi:

-

Maximum video output resolution:

3840x2160

Image sensor:

1/2.7" CMOS

Bitrate (Mb/sec):

10

Power supply:

12V DC

Lens (mm):

2.8

Net Weight (kg):

0.350

Sensitivity(Lux):

0,005

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø103.5 x 82.4

Power consumption, Watt:

7.5

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264
Overview

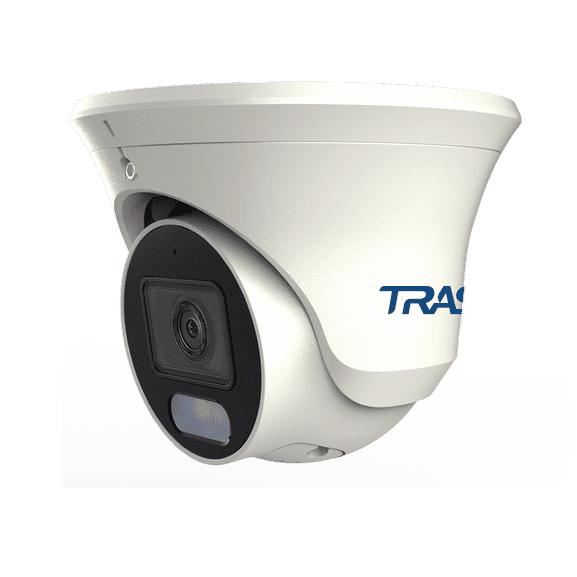

8 MP (3840×2160) TRASSIR TR-D8181IR3 v3 2.8 IP camera works stably outdoors in the temperature range of –40 °C… +60 °C, comes in a metal housing protected from moisture and dust according to IP67 standard, suitable for night video surveillance - equipped with IR illumination with a range of 30 m.

Functionality

  • Motion detection, virtual line crossing, area intrusion, area exit, abandoned and missing objects, loitering, crowd, parking, sound events, defocus, scene change.
  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor mode - shooting in vertically oriented resolution.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • BLC - backlight compensation.
  • Lightning protection (TVS 4000 V).
  • Built-in microphone.
  • Strobe mode for visual signaling.
  • Compression H.265+, H.265, H.264+, H.264.
  • Broadcast speed and resolution of the main stream - 15 fps 3840 × 2160, 25 fps 2592 × 1944, 2560 × 1440, 2304 × 1728, 2048 × 1536, 1920 × 1080, 1280 × 960, additional - 15 fps 1280 × 720, 704 × 576 , 352×288.

Basics

TR-D8181IR3 v3 2.8 is built on a 1/2.7-inch CMOS sensor with a sensitivity of 0.005 lux. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 10 Mbps. Equipped with a fixed lens with a focal length of 2.8 mm, a horizontal angle of view of 105°, a vertical angle of 56°, an aperture of F / 1.8, an RJ-45 network port, a slot for microSD with a capacity of up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 8 watts. Size - Ø103.5×82.4 mm. Weight - 350 g.
