TR-D8121IR3 v7 3.6
Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
2MPForm factor:
SphereMaximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
3.6Net Weight (kg):
0.38 / 0.48Sensitivity(Lux):
0.005Lux (F1.6)Local storage:
MicroSD up to 256GBIngress protection:
IP66, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
5.5WDimensions (mm):
Ø93 x 92.2Power consumption, Watt:
DC: 3.5W PoE: 5.5WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H88°±5°, V48°±5°Video compression:
Н.265+ / Н.265 / H.264

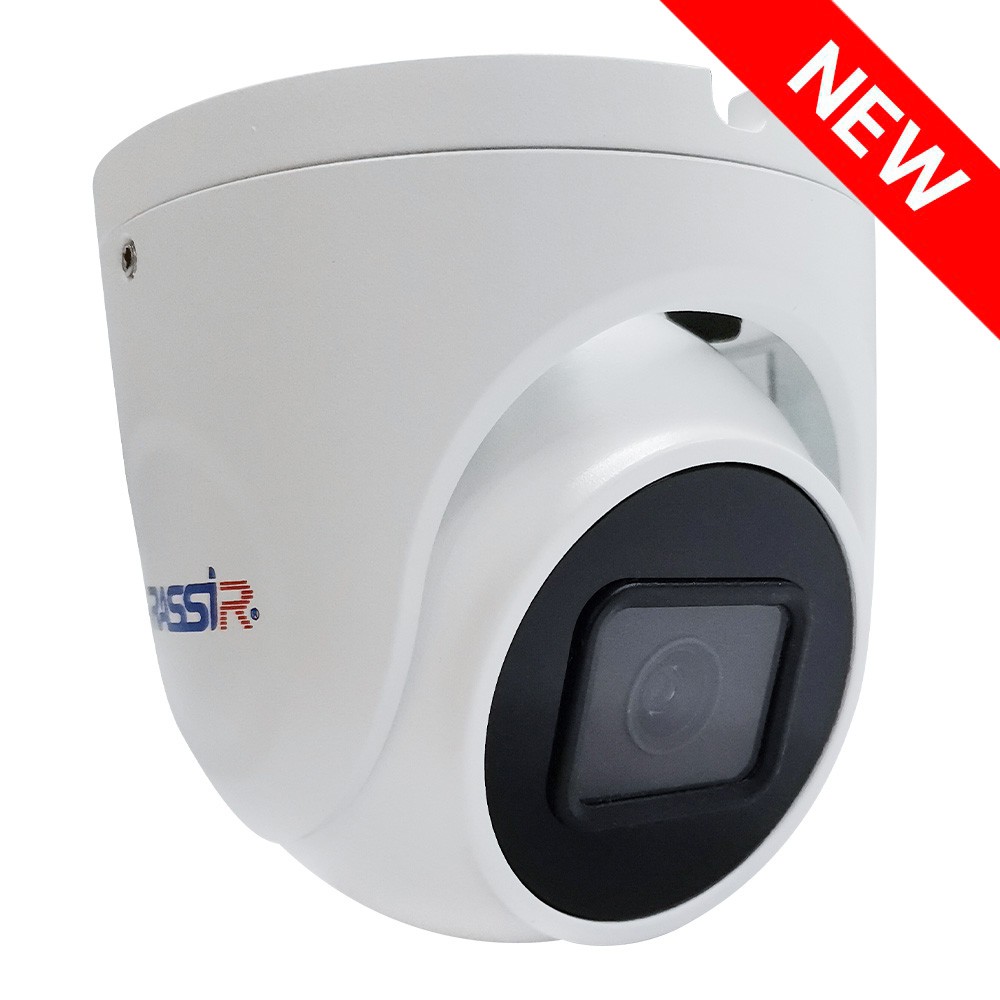

The 2 MP (1920×1080) IP camera TRASSIR TR-D8121IR3 v7 3.6 is designed for outdoor use in areas with direct access, at any time of year and day. Its metal body is protected against moisture and dust according to the IP66 standard and against mechanical impacts according to the IK10 standard. The operating temperature range is –40 °C to +60 °C. Lightning protection is provided by a TVS 4000 V device. The integrated IR illumination has a range of 30 meters.
Parameters:
- Detection of people, vehicles, line crossing, entry, and exit from the area
- Real WDR 120 dB — reduces the effects of multi-contrast lighting on image quality
- 3D DNR — spatial noise reduction for clearer images
- Corridor mode — optimized for vertically oriented video
- 1/2.8" CMOS sensor with 0.005 lx sensitivity
- Fixed 3.6 mm lens with an 88° horizontal and 48° vertical viewing angle, aperture F/1.6
- Mechanical IR filter — blocks infrared rays when there is sufficient light
- Compression formats: H.265+, H.265, H.264
- Built-in microphone
- SD card slot supporting up to 256 GB; hot-swappable card
- Network port, audio input, audio output, reset button
- Power supply: DC 12 V or PoE
- Maximum power consumption: 3.5 W
- Dimensions: Ø93 × 92.2 mm
- Weight: 380 g
TR-D8121IR3 v7 3.6.pdf
