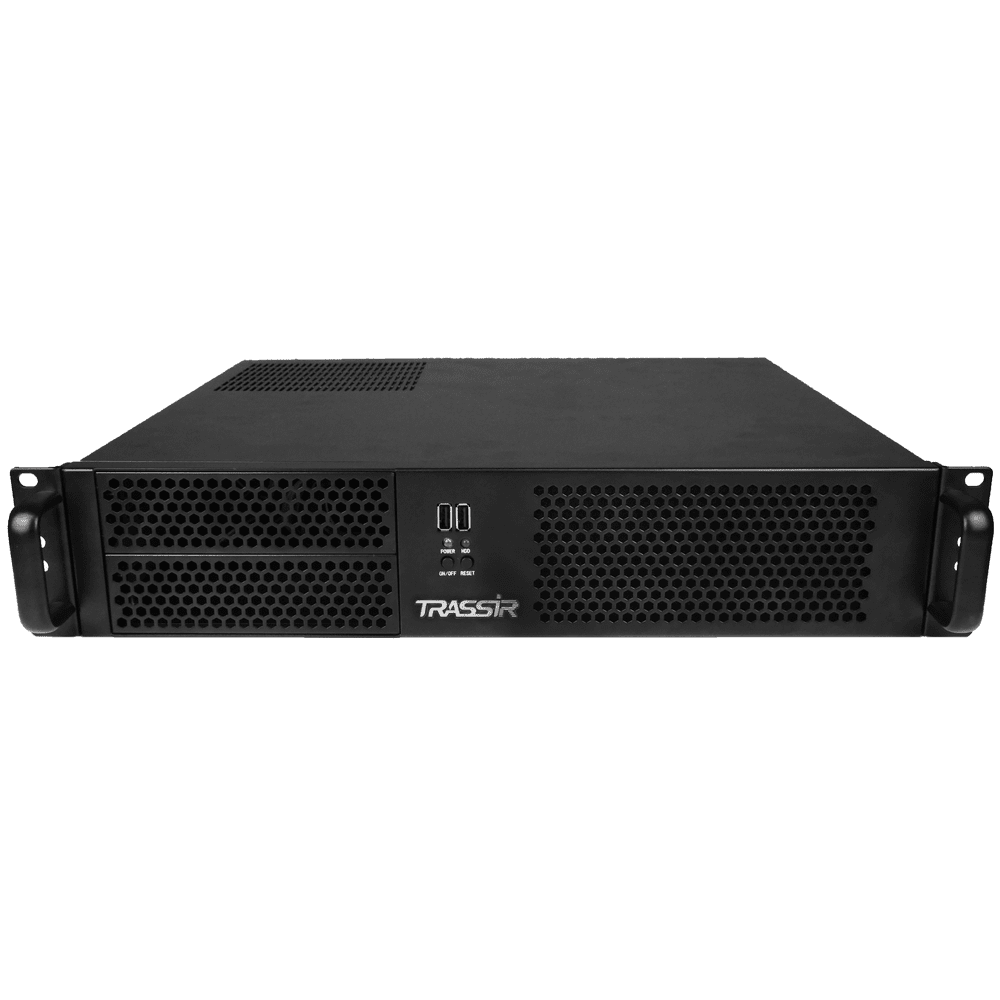

TRASSIR PC Server 8200R/16

Technical specifications

Number of HDD:

2

Bitrate (Mb/sec):

640

Power supply:

AC 220 V

Net Weight (kg):

7.3

Dimensions (mm):

482 х 390 х 89

Power consumption, Watt:

400

Working temperature, C°:

10...30ºС

Network interfaces:

1

Video compression:

H.265+, H.265, H.264, MPEG4 or MJPEG
Overview

Rack (2 U, 19 "rack) IP-video recorder is designed for up to 16 IP cameras. Equipped with one RJ-45 Gigabit network ports, D-SUB (VGA) video outputs, HDMI, 2 SATA interfaces for HDD 3.5 " of any capacity, two USB 2.0 on the front panel, three USB 3.0, one USB 2.0 on the rear panel, PS / 2 for mouse and keyboard, audio in, audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs (depending on the IP camera).



Equipment:


  • Video recorder (assembled and packaged).

  • Mouse (USB)

  • Power cord

  • Product data sheet

  • Warranty card

Basics:

PC Server series IP video recorders support video analytic modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives.
