TRASSIR PC Server 8800R/160-A8-S

Technical specifications

Number of HDD:

8

Bitrate (Mb/sec):

720

Power supply:

AC 220 V

Net Weight (kg):

15.5

Video output:

1 D-SUB (VGA), 1 DVI-D, 1 DisplayPort

Dimensions (mm):

430х550х176

Power consumption, Watt:

600

Working temperature, C°:

10...30ºС

Network interfaces:

2

Video compression:

H.265+ | H.265 | H.264 | MPEG4 | MJPEG
Overview

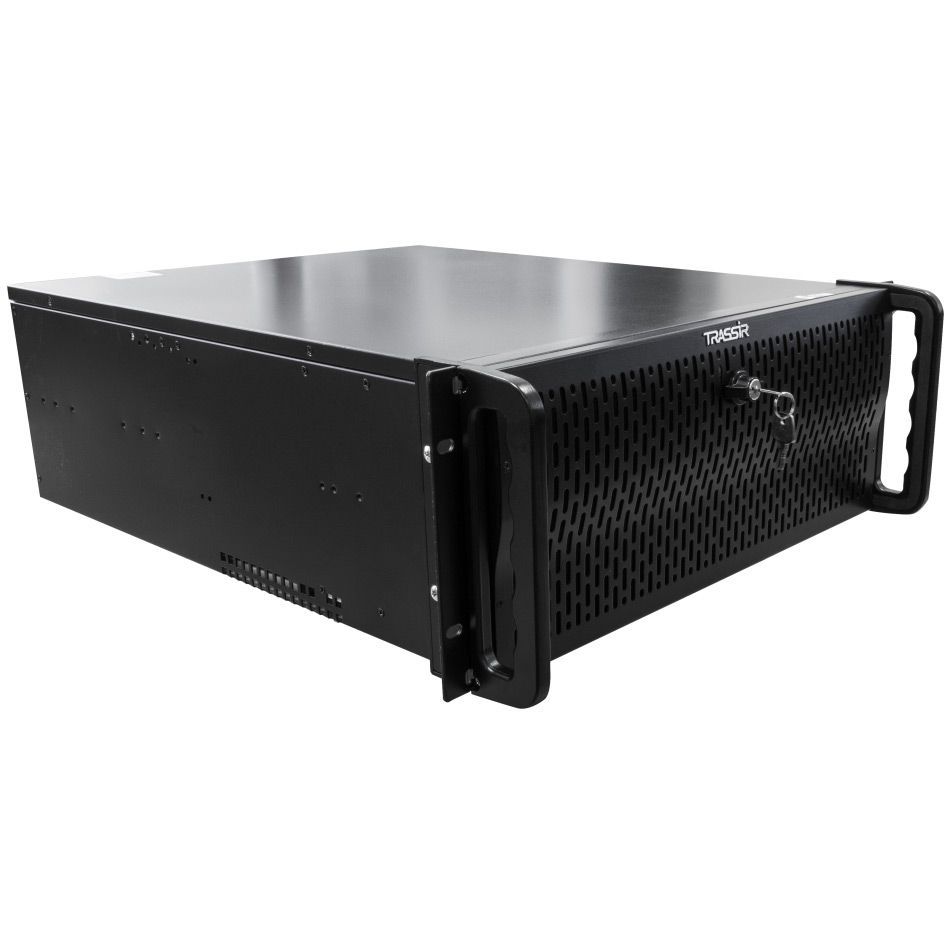

TRASSIR PC Server 8800R / 160-A8-S

Rack (4 U, 19 "rack) IP-video recorder is designed for up to 160 IP cameras. Equipped with two RJ-45 Gigabit network ports,  D-SUB (VGA) video outputs, DVI-D, DisplayPort, 8 SATA interfaces for HDD 3.5" any capacity, two USB 2.0 on the front panel, five USB 3.0, one USB 3.1 on the rear panel, PS / 2 for mouse and keyboard, audio in, audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs (depending on the IP camera). No restrictions on recording permission.


Equipment:

  • Video recorder (assembled and packaged).
  • Telescopic guides.
  • Keyboard (PS / 2)
  • Mouse (USB)
  • SATA cable 8 pcs.
  • Power cable
  • Product data sheet
  • Warranty card
  • DVR User Manual
  • System board user manual (1 in English, 1 in multiple other languages)

Basics:

PC Server series IP video recorders support video analytic modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives.
