NeuroStation 8600R/128-S

Technical specifications

Audio:

audio in/out 1/1

Resolution:

No limits

IP video input:

128

Bitrate (Mb/sec):

720

Net Weight (kg):

16.5

Power supply, V:

AC 220

Dimensions (mm):

485х555х90

Power consumption, Watt:

500

Working temperature, C°:

10...30ºС

Network interfaces:

Ethernet

Video compression:

H.265+, H.265, H.264, MPEG4 or MJPEG

USB 3.0:

2
Overview

NeuroStation 8600R/128-S INT


Rack (2 U, 19 "rack) IP-video recorder is designed for up to 128 IP cameras. Equipped with two RJ-45 Gigabit network ports,  D-SUB (VGA) video outputs, DVI-D, DisplayPort, 6 SATA interfaces for HDD 3.5 ", two USB 3.0 (Type A), two USB 2.0 (Type A), one USB 3.1 (Type A), one USB 3.1 (Type С) on the rear panel, two USB 2.0 (Type A) on the front panel, PS / 2 for mouse and keyboard, audio in, audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs (depending on the IP camera).



Equipment:


  • Video recorder (assembled and packaged).

  • Mouse (USB)

  • Keyboard (PS / 2)

  • Power cord

  • Video recorder rack mounting rails kit

  • Product data sheet

  • Warranty card



Basics:


NeuroStation series IP video recorders support video analytic modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives.


Other Products

TRASSIR NeuroStation Pro

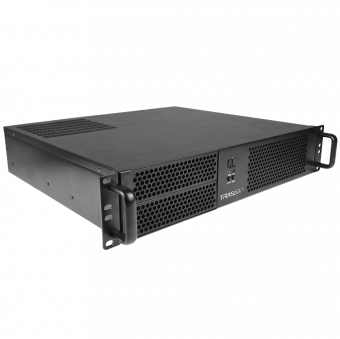

TRASSIR NeuroStation Compact RE AnyIP 8

Network video recorder for building CCTV systems

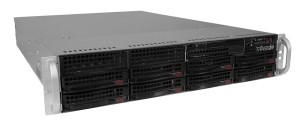

NeuroStation 8800R/128-A5-S

Network video recorder for IP-cameras

TRASSIR NeuroStation 88128R/160-A8-S

Network video recorders for IP-cameras under TRASSIR OS

TRASSIR ACS

Access control and management system

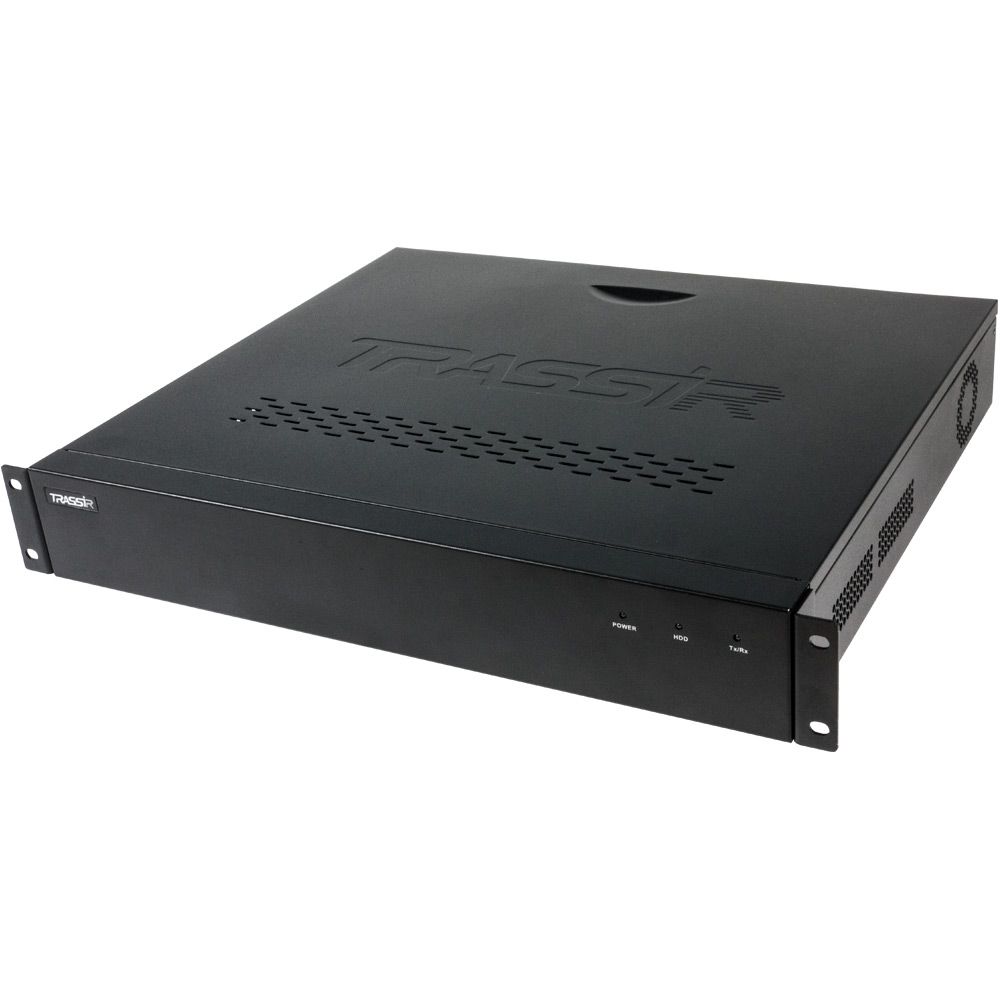

TRASSIR DuoStation-RE AnyIP 16
