NeuroStation 8664R/64

Technical specifications

Audio:

audio in/out 1/1

Resolution of cameras (max):

No limits

IP video input:

64

Bitrate (Mb/sec):

720

Weight Net (kg):

16.5

Power supply, V:

AC 220

Dimensions (mm):

485х555х90

Power consumption, Watt:

500

Working temperature, C°:

10...30ºС

Network interfaces:

Ethernet

Video compression:

H.265+, H.265, H.264, MPEG4 or MJPEG

USB 3.0:

2
Overview

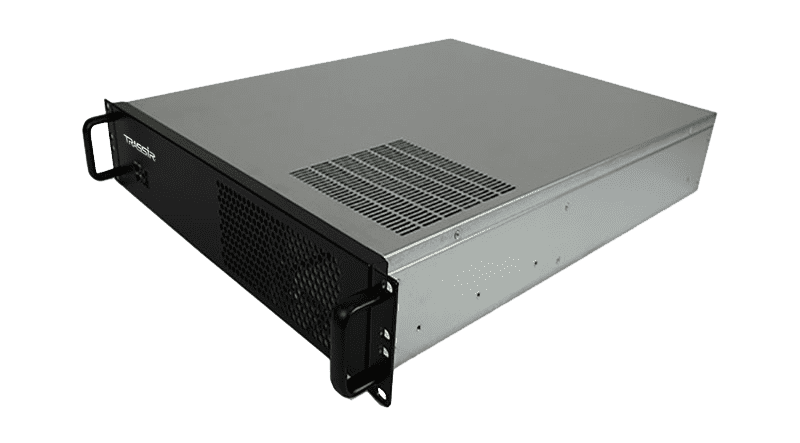

Rack (2 U, 19 "rack) IP-video recorder is designed for 64 IP cameras (64 AnyIP licenses included). Equipped with two Gigabit network ports RJ-45, video outputs D-SUB (VGA), DVI-D, DisplayPort, 6 SATA interfaces for HDD 3.5 " of any capacity, two USB 3.0 (Type A), two USB 2.0 (Type A), one USB 3.1 (Type A), one USB 3.1 (Type С) on the rear panel, two USB 2.0 (Type A) on the front panel, PS / 2 for mouse and keyboard, audio in, audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs (depending on the IP camera).



Equipment:


Video recorder (assembled and packaged).


  • Mouse (USB)

  • Keyboard (PS / 2)

  • Power cord

  • Video recorder rack mounting rails kit

  • Product data sheet

  • Warranty card



Basics:


NeuroStation series IP video recorders support video analytic modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives.
