TRASSIR DuoStation-RE AnyIP 16

Technical Specifications

Number of HDD:

4

Resolution of cameras (max):

No limits

IP video input:

16

Power supply:

AC 220

Weight Net (kg):

5

Video output:

D-SUB, HDMI

Dimensions (mm):

440x70x390

Power consumption, Watt:

75

Working temperature, C°:

+10...+30

Video compression:

H.265 | H.265+ | Н.264 | MPEG4 | MJPEG
Overview

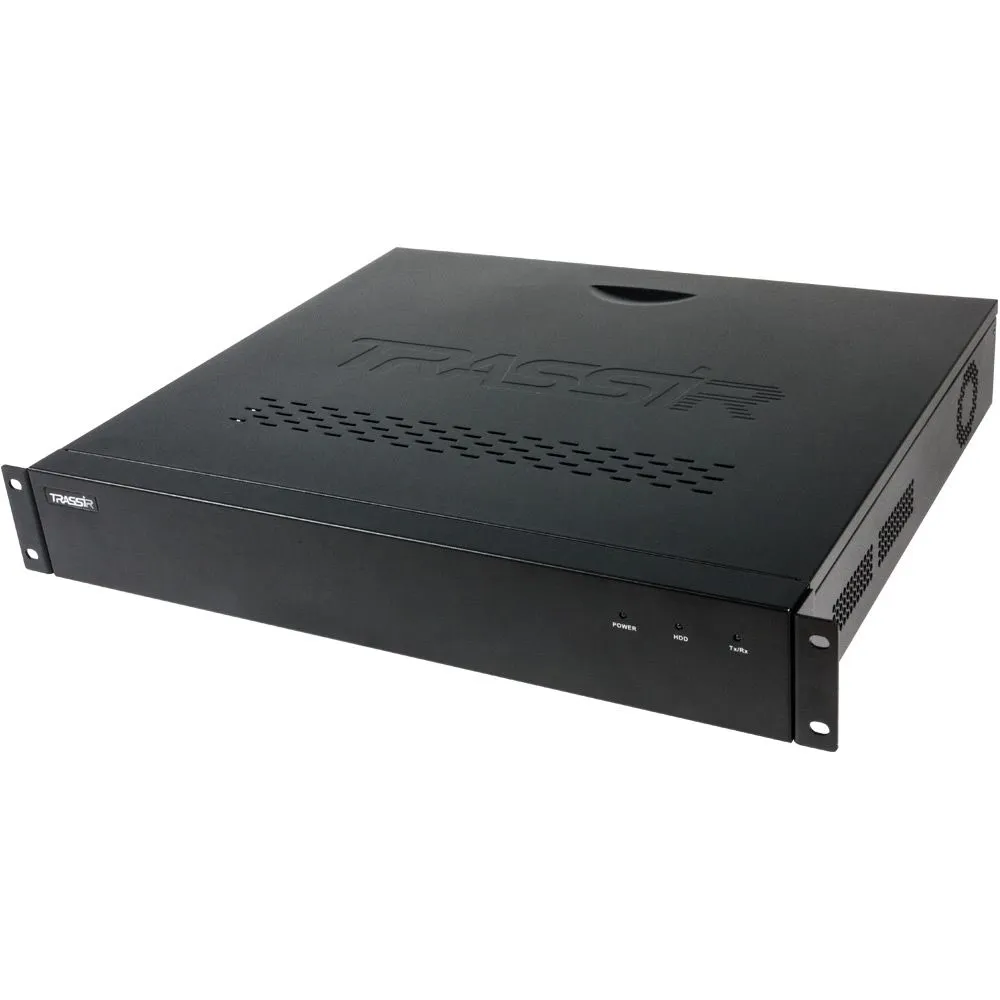

TRASSIR DuoStation AnyIP 16-RE

 The network video recorder is designed to connect 16 IP cameras with a recording resolution of up to 8 megapixels. Delivered with Linux-based TRASSIR OS preinstalled

TRASSIR DuoStation AnyIP 16-RE is equipped with D-Sub and HDMI video outputs (independent), an RJ-45 port, two USB 2.0, USB 3.0, SATA for four HDD / SSD of any size.

Equipment:

  • - Video recorder (assembled and packaged)
  • - Power cable
  • - SATA interface cables
  • - Screws for HDD mounting
  • - Mounting kit with screws for 19 "rack
  • - Mouse
  • - Product data sheet
  • - Warranty card
  • - DVR User Manual

Basics:

Power supply unit power 75 W. The operating temperature range is in the range from + 10 ° C to + 30 ° C. The dimensions of the device are 440x390x70 mm. 19 "(1.5 U) rack mounting, hardware included.
