TR-H2S1 3.6

Book A Demo How To Buy

Technical specifications

WDR:

DWDR 105 dB

IR range:

20m

Maximum video output resolution:

1920x1080

Image sensor:

1/3" CMOS

Power supply:

12V DC

Lens (mm):

3.6

Net Weight (kg):

0,3

Ingress protection:

IP67

Dimensions (mm):

99×81

Power consumption, Watt:

6.6

Working temperature, C°:

–10 °C… +60 °C

Day/Night Mode:

Mechanic IR-filter

Overview

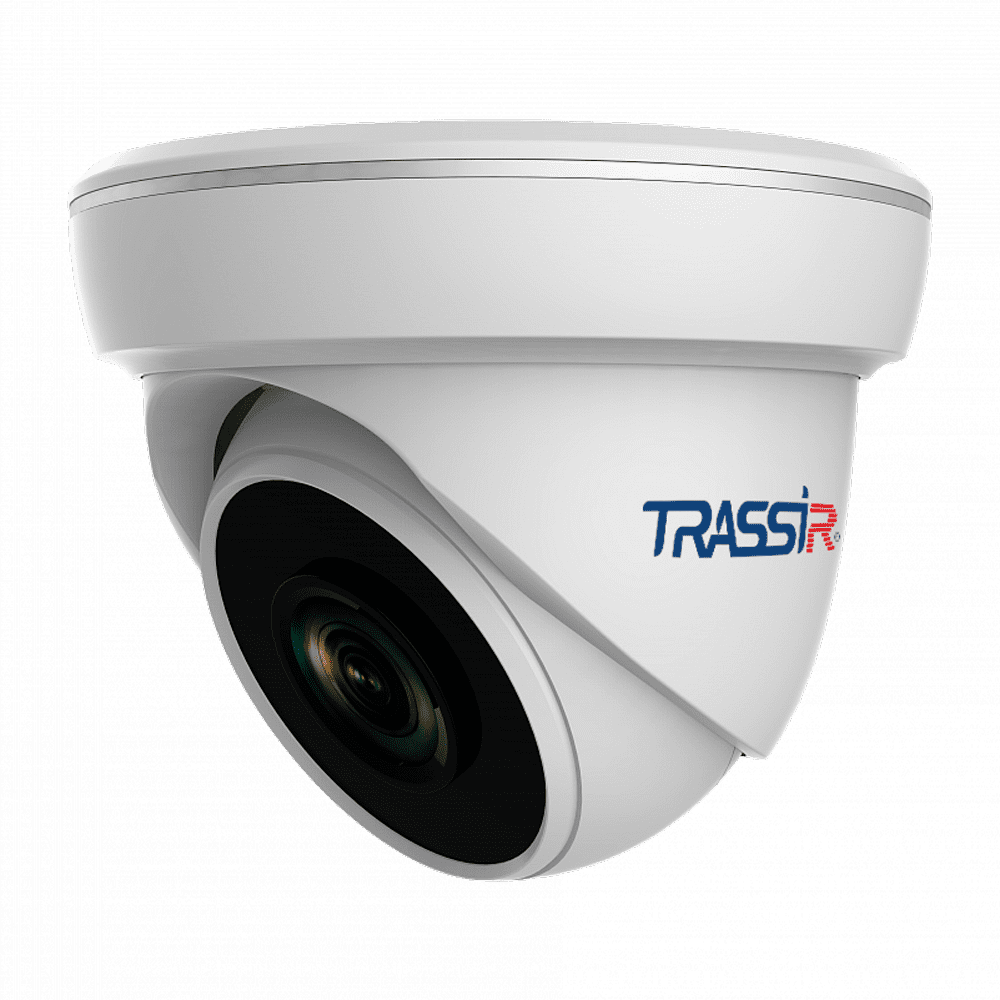

TRASSIR TR-H2S1 (3.6 mm)

Analog indoor 2 MP (1920 × 1080) camera compatible with AHD, HD-CVI, HD-TVI data transfer formats: transmits an uncompressed 2 MP video signal over a distance of up to 500 m (1,000 ft). Supports day/night mode, equipped with a mechanical infrared filter: in conditions where light is sufficient, the ICR refracts the IR rays, standardizing color rendition; in low light, it mechanically shifts to optimize the matrix sensitivity to the infrared range and enables the backlight function.

Functionality:

DWDR is a software-based image processing solution that corrects the imbalances resulting from changes in the lighting conditions of a setting.
2D DNR: Noise reduction.
Broadcast speed: 25 frames per second.

Specifications:

TR-H2S1 (3.6 mm) is built on a 1/3" CMOS matrix with 0.01 lux sensitivity. Equipped with a 3.6 mm fixed focal length lens, horizontal field of view of 81°, vertical field of view of 57°. A joystick allows you to switch from one data transfer format to another. Power supply: 12 V DC. Power consumption: 6.6 W. Current consumption: 550 mA. Dimensions: Ø99 × 81 mm. Weight: 300 g. Operating temperatures: –10 °C to +60 °C.

Documentation

TR-H2S1 passport (eng).pdf
