TR-H2S6 2.8-12

Technical Specifications

WDR:

DWDR

Maximum video output resolution:

1920x1080

Image sensor:

1/3" CMOS

Power supply:

DC 12 V

Sensitivity:

0,01

Ingress protection:

IP67

Dimensions (mm):

119x98

Working temperature, C°:

-30...+60
Overview

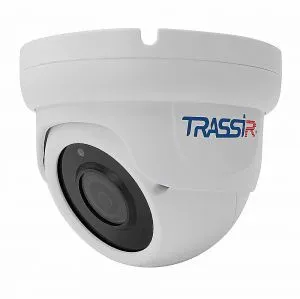

TRASSIR TR-H2S6

Analog 2 megapixel (1920 × 1080) camera supports data transfer formats AHD, HD-CVI, HD-TVI - transmits an uncompressed 2 megapixel signal at a distance of up to 500 m. Designed for outdoor use at any time of the year: housing is protected from dust and moisture according to IP67 standard, operating temperatures - –30 ° C… +60 ° C.

Resolution by format:

  • - AHD - 2 MP.
  • - HD-CVI - 2 MP.
  • - HD-TVI - 2 MP.
  • - PAL - 960H.


Functionality:
  • - DWDR - software image processing, selective lightening of shadowed objects.
  • 2D DNR - Plane Noise Reduction.
  • - Day / night mode with ICR: in case of sufficient illumination, the filter blocks the rays of the infrared range, normalizing color rendition, and in the dark it is mechanically shifted to the side to increase the sensitivity of the matrix and the operation of the backlight.
  • - Broadcast speed - 25 frames per second.
  • - IR with a range of 30 m.

Basics:

TR-H2S6 is based on 1/3 "progressive scan CMOS sensor, 0.01 lux sensitivity. Equipped with 2.8 ~ 12 mm zoom lens, 97 ° ~ 37 ° horizontal field of view, 60 ° ~ 22 ° vertical field of view. Supplied with swivel bracket for easy installation Power supply - 12 V DC Current consumption - 550 mA Power - 6.6 W. Size - Ø119 × 98 mm Weight - 800 g.
