TR-H2L1 3.6
Technical Specifications
WDR:
DWDRMaximum video output resolution:
1920x1080Image sensor:
1/2.9" CMOSPower supply:
DC 12 VLens (mm):
3.6Weight Net (kg):
0.15Sensitivity:
0,1IR:
YesPower supply, V:
DC 12Dimensions (mm):
30×33×30Power consumption, Watt:
8.4Resolution:
1080pWorking temperature, C°:
–10 °C… +50 °CDay/Night Mode:
Electronic IR-filterOverview

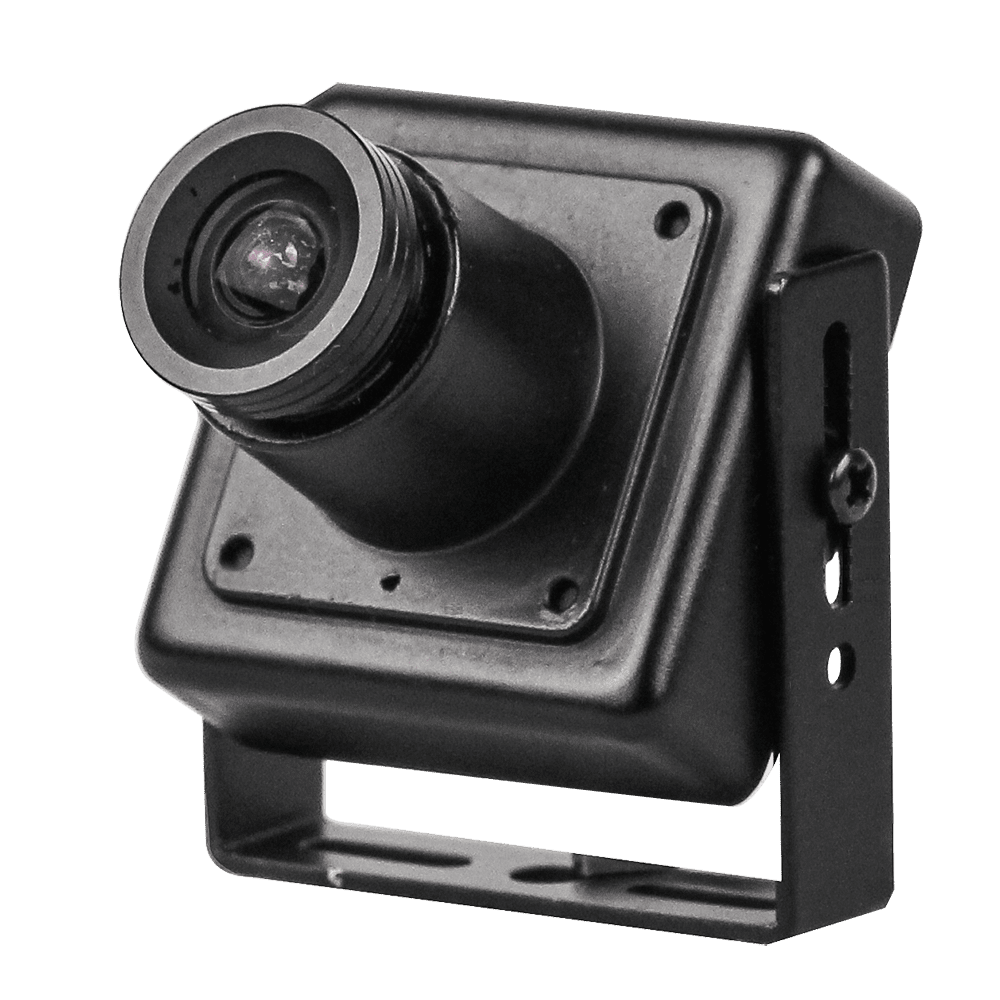

TRASSIR TR-H2L1 (3.6 mm)
The analog 2 megapixel (1920 × 1080) camera is made in a micro-case - the largest side is 32 mm. Supports data transmission formats AHD, HD-CVI, HD-TVI - transmits uncompressed 2-megapixel video signal over coaxial cable up to 500 m.
Resolution by format:
- AHD — 2 MP.
- HD-CVI — 2 MP.
- HD-TVI — 2 MP.
- PAL — 960H
Functionality:
- DWDR - software image processing to improve the visibility of shadowed objects.
- 2D DNR - Noise Reduction.
- Day / night mode with electronic IR-cut filter, which is a spray that blocks the rays of the infrared range.
- Broadcast speed - 25 frames per second.
Basics:
TR-H2L1 (3.6 mm) is built on a 1 / 2.9 "progressive scan CMOS matrix, 0.01 lx sensitivity. Equipped with a 3.6 mm fixed focal length lens. Power supply - 12 V DC. Current consumption - 300 mA. Size - 30 × 33 × 30 mm Working temperature - –10 ° C… +50 ° C.
The analog 2 megapixel (1920 × 1080) camera is made in a micro-case - the largest side is 32 mm. Supports data transmission formats AHD, HD-CVI, HD-TVI - transmits uncompressed 2-megapixel video signal over coaxial cable up to 500 m.
Resolution by format:
- AHD — 2 MP.
- HD-CVI — 2 MP.
- HD-TVI — 2 MP.
- PAL — 960H
Functionality:
- DWDR - software image processing to improve the visibility of shadowed objects.
- 2D DNR - Noise Reduction.
- Day / night mode with electronic IR-cut filter, which is a spray that blocks the rays of the infrared range.
- Broadcast speed - 25 frames per second.
Basics:
TR-H2L1 (3.6 mm) is built on a 1 / 2.9 "progressive scan CMOS matrix, 0.01 lx sensitivity. Equipped with a 3.6 mm fixed focal length lens. Power supply - 12 V DC. Current consumption - 300 mA. Size - 30 × 33 × 30 mm Working temperature - –10 ° C… +50 ° C.
