TR-D2221WDIR4W v2 3.6

Technical specifications

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Resolution:

2MP

Form factor:

Bullet

Wi-Fi:

Yes

Maximum video output resolution:

1920x1080

Bitrate (Mb/sec):

8

Power supply:

12V DC

Lens (mm):

3.6

Net Weight (kg):

0.460

Sensitivity(Lux):

0,005

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

184.3 x 67.3 x 63.9

Power consumption, Watt:

5.3

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264
Overview

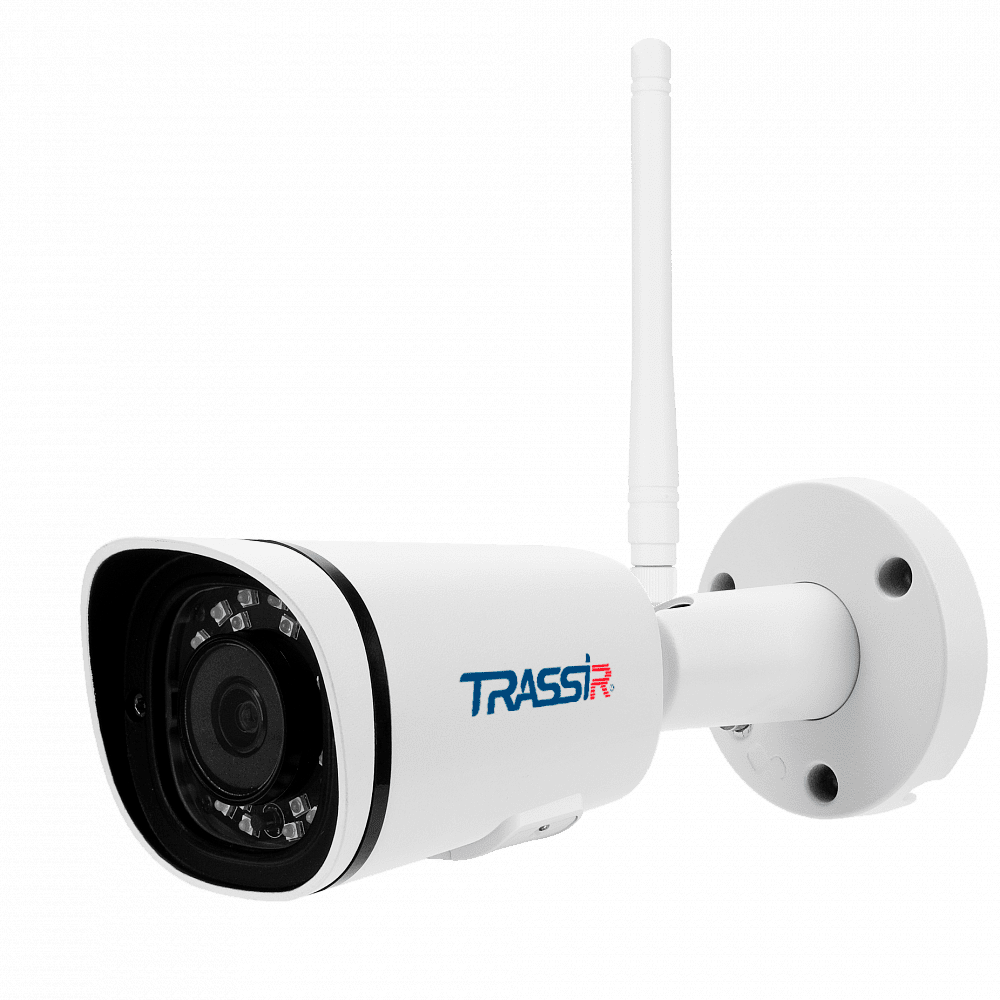

2 MP (1920×1080) IP-camera TRASSIR TR-D2221WDIR4W v2 3.6 is adapted for outdoor use at any time of the year: protection of the body made of metal against moisture and dust complies with the IP67 standard, operating temperatures from -40 °C ... +60 °C , lightning protection - TVS 4000 V. Equipped with a Wi-Fi module - for wireless data transmission.

Functionality

  • Detect motion, people, line crossing, zone intrusion, loitering, traffic, people counting.
  • WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
  • 3D DNR - spatial noise reduction.
  • Corridor mode - shooting in vertically oriented resolution.
  • Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
  • BLC - backlight compensation.
  • IR illumination with a range of 40 m.
  • Compression H.265+, H.265, H.264.
  • The broadcast speed and resolution of the main stream is 25 fps 1920×1080, 1280×960, 1280×720, the secondary stream is 25 fps 704×576, 640×480, 640×360, 352×288.


Basics

TR-D2221WDIR4W v2 3.6 is built on a 1/2.8-inch CMOS sensor with 0.005 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 8 Mbps. Equipped with a fixed lens (focal length - 3.6 mm, horizontal viewing angle - 101°, vertical - 55°, aperture - F / 1.8), RJ-45 network port, integrated microphone, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 6.3 W. Size - 184.3 × 67.3 × 63.9 mm. Weight - 460 g.
