NeuroStation 8600R/64

Archive

Technical specifications

Audio:

Built-in microphone

IP video input:

64

Bitrate (Mb/sec):

720

Power supply:

AC 220 V

Net Weight (kg):

16.5

Dimensions (mm):

485х555х90

Power consumption, Watt:

500

Working temperature, C°:

10...30ºС

Network interfaces:

Ethernet

Video compression:

H.265+, H.265, H.264, MPEG4 or MJPEG

USB 3.0:

2
Overview

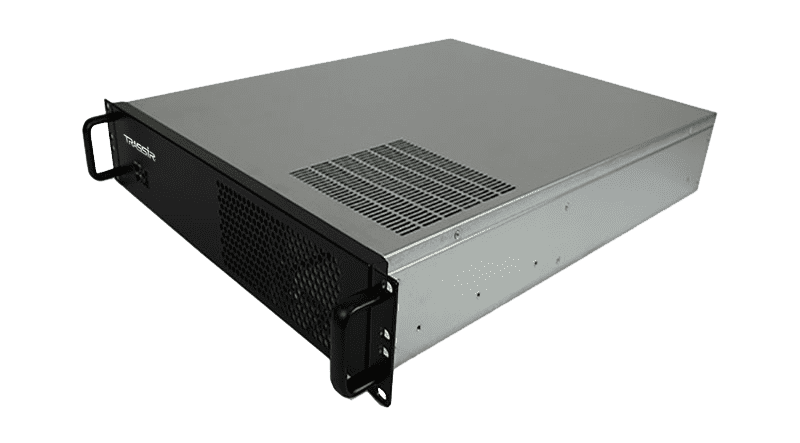

Rack (2 U, 19 "rack) IP-video recorder is designed for up to 64 IP cameras. Equipped with two RJ-45 Gigabit network ports,  D-SUB (VGA) video outputs , DVI-D, DisplayPort, 6 SATA interfaces for HDD 3.5 " of any capacity, two USB 3.0 (Type A), two USB 2.0 (Type A), one USB 3.1 (Type A), one USB 3.1 (Type С) on the rear panel, two USB 2.0 (Type A) on the front panel, PS / 2 for mouse and keyboard, audio in, audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs (depending on the IP camera).



Equipment:


  • Video recorder (assembled and packaged).

  • Mouse (USB)

  • Keyboard (PS / 2)

  • Power cord

  • Video recorder rack mounting rails kit

  • Product data sheet

  • Warranty card



Basics:


NeuroStation series IP video recorders support video analytic modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives.
